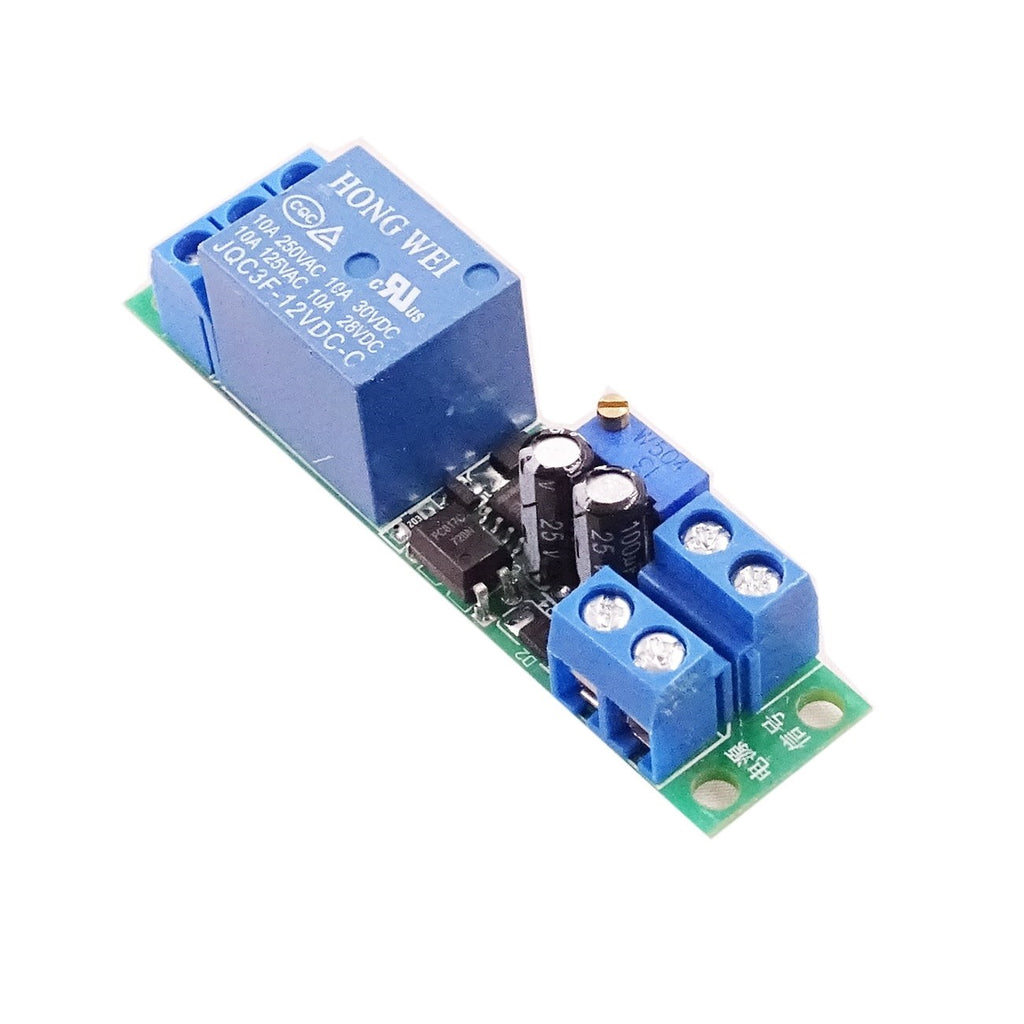

DC 12V Switch Delay-Relay Module with Adjustable Delay Time 0~25 Second Signal Triggering Switch Module

Save 5%
Sold By: HNHSKU: K02-28

Price:
Sale price₹ 132.00 Regular price₹ 139.00

Tax included Shipping calculated at checkout

Min Qty:

Description

  1. Module based on: NE555 chip.
  2. Precision Pulse Generation / Timing.
  3. Adjustable Duty Cycle.
  4. Monostable Operation.
  5. Standby no power consumption
  6. Countless Application and Information Sources.
  7. Time can be adjusted by a potentiometer, the default is 0-25 seconds.
  8. Module supplies a diode with an anti-power reverse connection.
Chipset

NE555

Input Supply Voltage (VDC)

12

Trigger Voltage (VDC)

12

Switching Voltage (VAC)

250@10A

Switching Voltage (VDC)

30@10A

Adjustable Time(s)

0 to 10

Maximum Load(W)

2200

Fmax(KHz)

500

Length (mm):

76

Width (mm):

17

Height (mm):

17

Weight (g):

18

Shipping Weight 0.02 kg
Shipping Dimensions 8 × 7 × 5 cm
