Description
- Operating Voltage: 12V DC
- Lifting Capacity: 8KG
- Size (D x L): 25 x 20 mm

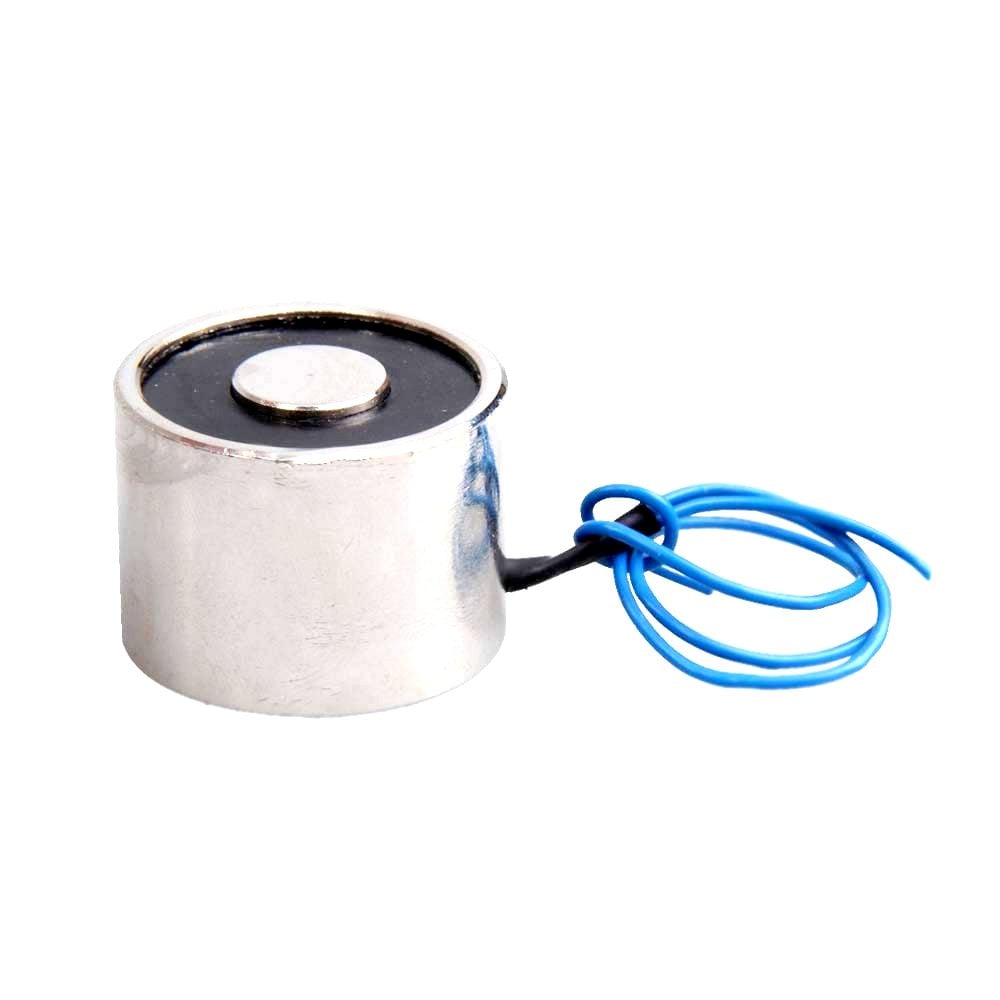

- Electric lifting magnet.
- Powerful and compact.
- Smooth and flat surface.
- Low consumption and reliable.
- Ambient temperature within 130 degrees.
| Model |
12V KK-P25/20 |
|---|---|
| Holding/ Suction Force (KG) |
8 |
| Operating Voltage (VDC) |
12 |
| Max. Operating Current (mA) |
0.17 |
| Power Consumption (Watt) |
2 |
| Operating Temperature (°C): |
-20 to 120 |
| Cable Length (cm) |
30 |
| Bolt Size |
M4 |
| Body Material |
Mild Steel |
| Dimensions in mm (LxWxH) |
25 x 20 (Dia x Length) |
| Weight (g): |
56 |
| Shipping Weight | 0.059 kg |
| Shipping Dimensions | 8 × 7 × 5 cm |
