Description
- Holding force: 0.25 kg
- Energized forms: intermittent
- Unlocking time: 1s
- Dimensions: 54 x 42 x 28 mm (LxWxH)

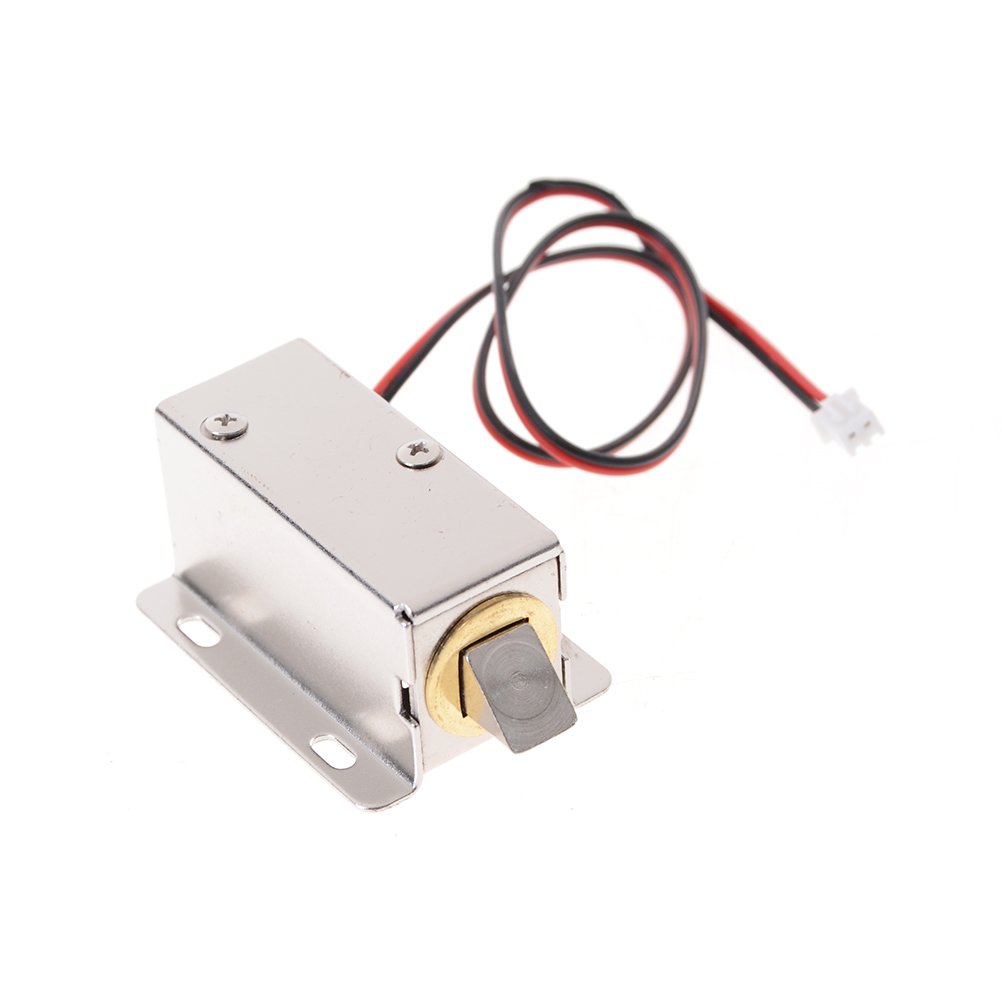

- High quality ultra-compact electric lock.
| Model |
DC 12V Cabinet Door Lock |
|---|---|
| Rated Operating Voltage (VDC) |
12 |
| Rated Current (mA) |
0.80A. |
| Power Consumption (Watt) |
9.6 |
| Holding Force (N) |
2.45 |
| Unlocking Time |
1 sec |
| Body Material |
Iron Metal |
| Energized forms |
Intermittent |
| Cable Length (cm) |
25 |
| Weight (g): |
150 |
| Dimensions (mm) LxWxH |
54 x 42 x 28 |
| Shipping Weight | 0.18 kg |
| Shipping Dimensions | 9 × 5 × 5 cm |
