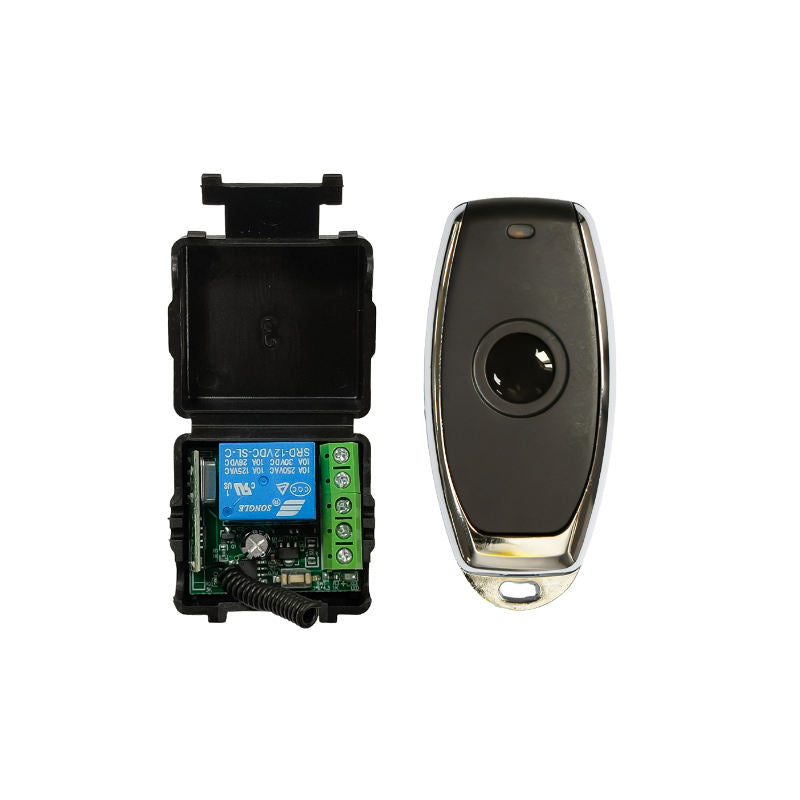

DC 12V 10A 433MHz Single Channel Relay Module RF Wireless Remote Control Switch Receiver and Remote Control Transmitter

Save 19%
Sold By: HatchnHackSKU: V0591

Sale price₹ 556.00 Regular price₹ 690.00

Tax included Shipping calculated at checkout

Out of stock


Working voltage: DC12V/23A Operating frequency: 315MHz, 433.92MHz (optional) Working current: 25mA Coding method: fixed code (PT2264 chip)\learning code (eV1527/PT2240B) Transmission distance: >1000m (the sensitivity of the receiving board in the open field is above -103dBm) Output power: 16dBm (40mW) Transmission rate: <10Kbps Modulation method: ASK (amplitude modulation) . Working temperature: -10℃~+70℃ Size: 85.3*36.4*16.2mm Application areas: Remote control switch, anti-theft alarm, remote control door lock, remote control electric shutter doors and windows, industrial control products, etc.

Working Mode

Momentary. Toggle .Latched


press one button is working /ON. loosen your finger on the same button is stop/OFF .one channel switch need one buttons remote control


press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one buttons remote control


press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote control )
