Description

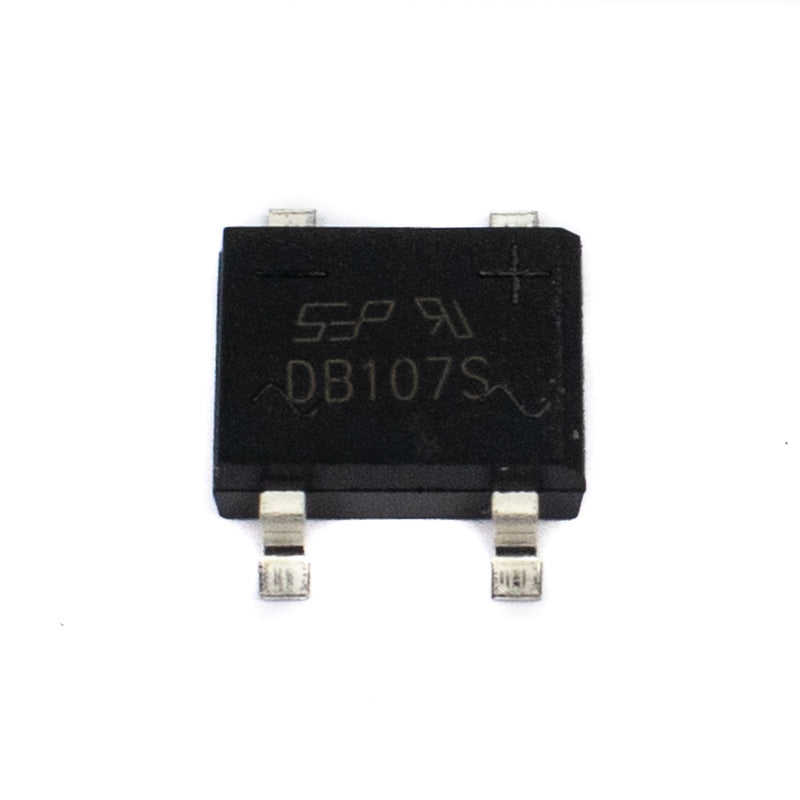

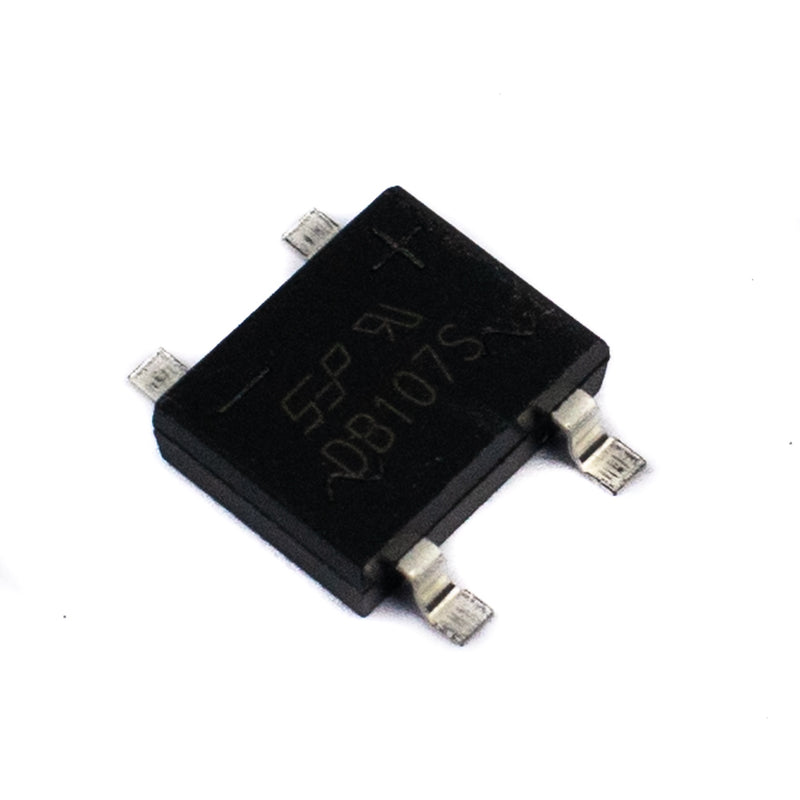

The DB107S is a bridge rectifier diode commonly used for single-phase applications. The maximum input AC RMS voltage of this IC is 700V hence, can be used for a broad range of applications. The maximum DC current that this IC can handle is 1A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a high surge current capability of 50A. If you are looking for a compact IC for rectification application this can be a good choice.
Pinout
| Pin Number | Pin Name | Pin Description |
| 1 | Positive | Positive of Rectified Output |
| 2 | AC Input | AC Input |
| 3 | Negative | Negative of Rectified Output |
| 4 | AC Input | Ac Input |
Features
- Good for automation insertion
- Surge overload rating - 50 amperes peak
- Ideal for printed circuit board
- Reliable low cost construction utilizing moulded
- Glass passivated device
- Polarity symbols moulded on the body
Specifications
| Input Voltage | 50-1000V |
| DC Blocking Voltage per element | 0.5mA |
| Maximum RMS Bridge Input Voltage | 700V |
| Maximum DC Blocking Voltage | 1000V |
| Maximum Average Forward Output Current | 1A |
| Maximum Forward Voltage Drop per Bridge | 1.1V |
| Operating Temperature Range: | -65 to + 150°C |
| Country of Origin | China |
