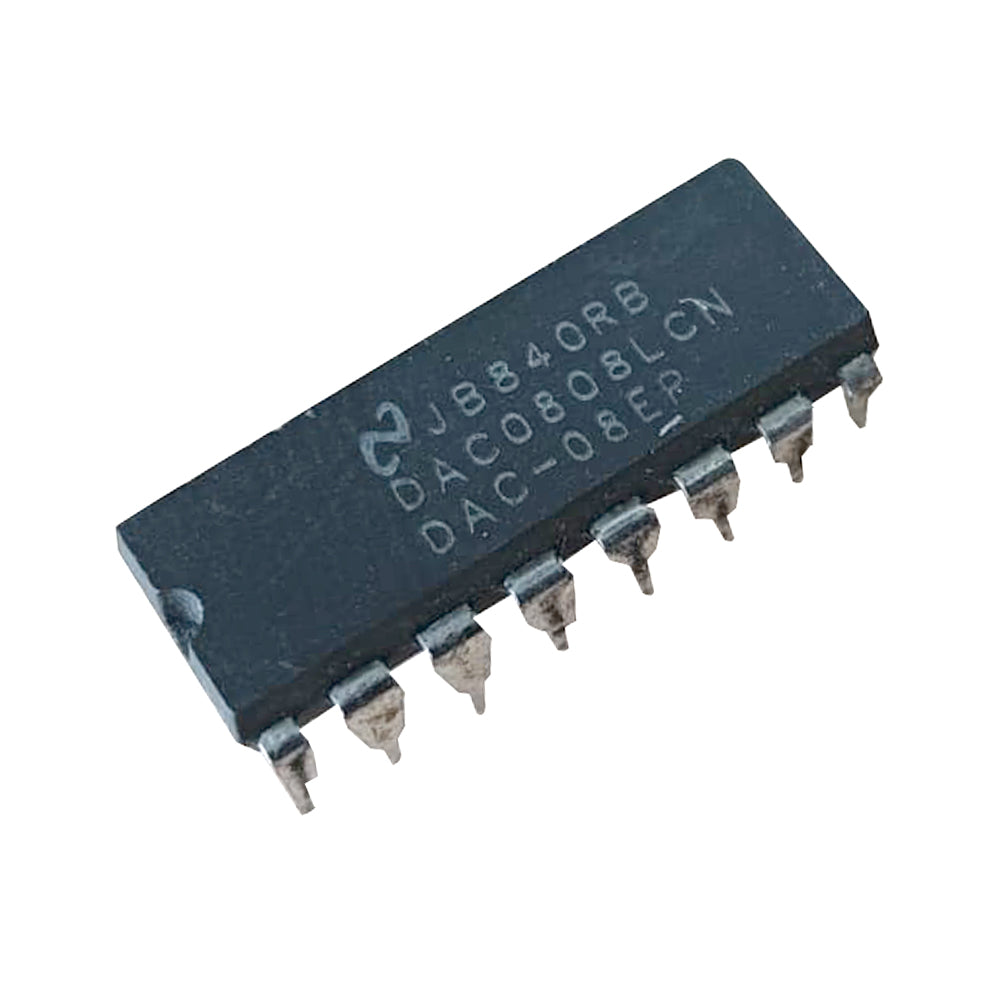

DAC0808LCN 8 Bit D/A Converter DIP-16 Package

Save 19%
Sold By: HatchnHackSKU: G02-16

Sale price₹ 76.50 Regular price₹ 95.00

Tax included Shipping calculated at checkout

Min Qty:


DAC0808LCN is an 8 Bit converter its DAC means its digital to analog converter. Featuring a full scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies. No reference current (IREF) trimming is required for most applications since the full scale output current is typically ±1 LSB of 255 IREF/256. Relative accuracies of better than ±0.19% assure 8-bit monotonicity and linearity while zero level output current of less than 4 µA provides 8-bit zero accuracy for IREF>=2 mA. The power supply currents of the DAC0808 is independent of bit codes, and exhibits essentially constant device characteristics over the entire supply voltage range.


  • Its full scale current match is -+ 1 LSB Type
  • Its settling time is too fast
  • Its non inverting Digital inputs as TTL and CMOS
  • Its low power consumption is 33mW on 5V
  • It has total 16 pin
Model DAC0808LCN
Type IC
No of Pins 16
Power Supply Voltage Range -4.5V to 18V
Package 16 DIP
Operating Temperature 0 to 70 Degree Centigrade
Fast Settling Time 150nS
