Description

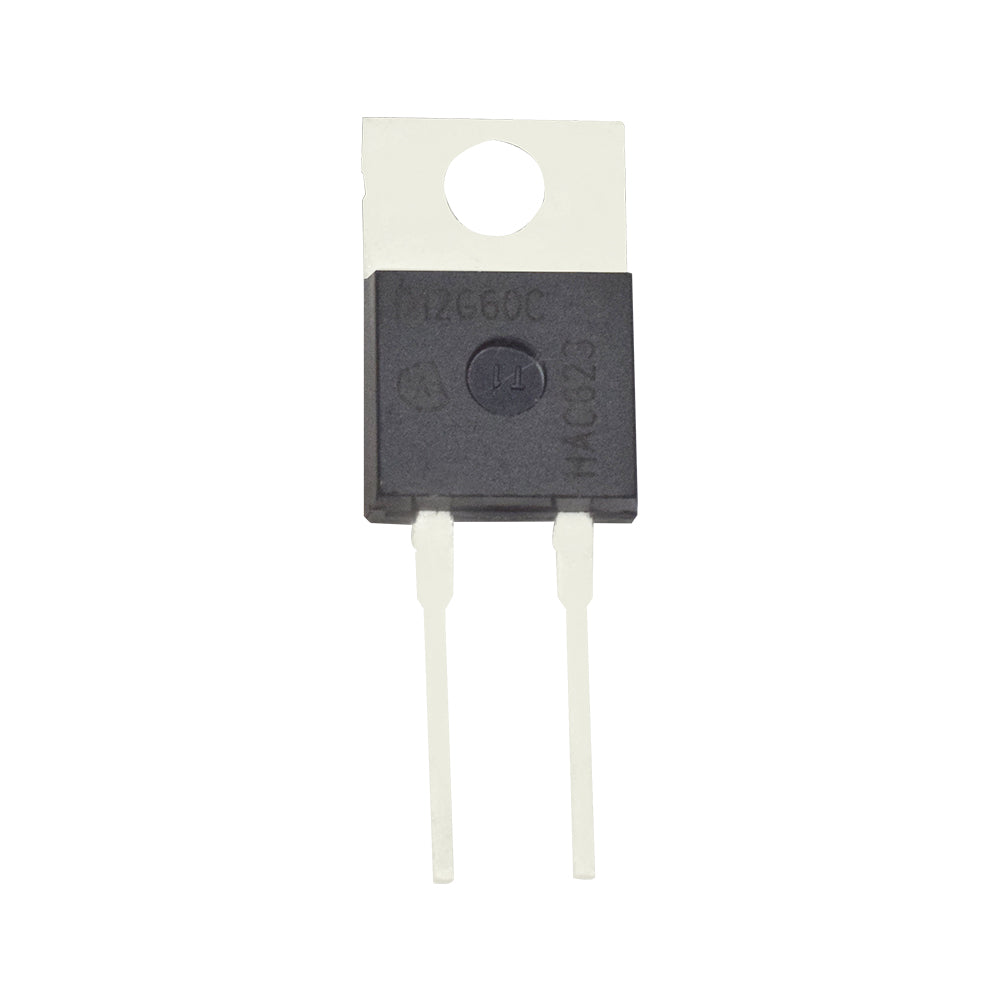

This is a D12G60C Schottky Diode in TO-220 Package. The Repetitive peak reverse voltage is 600 Volt and the Continuous forward current is 12A. It has power dissipation 125w .It has high surge current capability and continuous forward current is 12A.
Features
-
Revolutionary semiconductor material - Silicon Carbide
-
Switching behavior benchmark
-
No reverse recovery / No forward recovery
-
Temperature-independent switching behavior
-
High surge current capability
-
Pb-free lead plating; RoHS compliant
Specification
| Model | D12G60C |
| Type | Schottky Diode |
| Package | Through Hole |
| VDC | 600V |
| QC | 19 NC |
| Continuous forward current | 12 A |
| Repetitive peak reverse voltage | 600V |
| Power dissipation | 125W |
| Operating and storage temperature | -55 ~ 175 °C |
| Country of Origin | China |
