Description

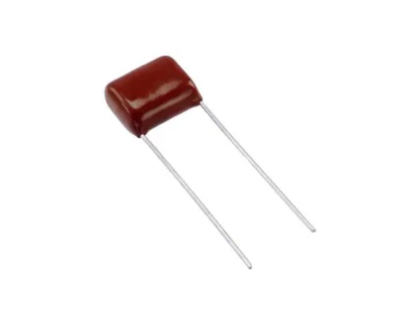

The 0.1uF 275V Polyester Film Capacitor is made of two metal plates with the polyester film sandwiched between them, or the insulator might be covered with a metalized film. Polyester is the most widely utilized dielectric material in this capacitor, allowing the capacitor's construction to be simplified. These capacitors are pretty inexpensive and have excellent self-healing properties. The dielectric & construction of polyester PET capacitors are used in different applications wherever sharp; spikes of quick rise time are there when they contain high dV/dt.
Applications
- This capacitor is used where maximum levels of peak current need to handle
- Used in different low-frequency pulsating & DC circuits
- Used for filtering wherever high levels of tolerance are not necessary.
- Used in the applications of coupling, decoupling & blocking of DC
- Used in power supplies wherever the levels of the highly high capacitance of electrolytic capacitors are not required.
| Specifications | |
|---|---|
| Model Number | D104K26 |
| Dimension | 12x5x8mm |
| No. of Pins | 2 |
| Lead Thickness | 0.5mm |
| Material | Metal Polyester Film |
| Pitch | 10mm |
| Capacitance | 0.1uF/100nF/104 |
| Mounting Type | Through Hole |
| Type | Metal Polyester Film Capacitor |
| Operating Voltage | 275V Rated |
