Description

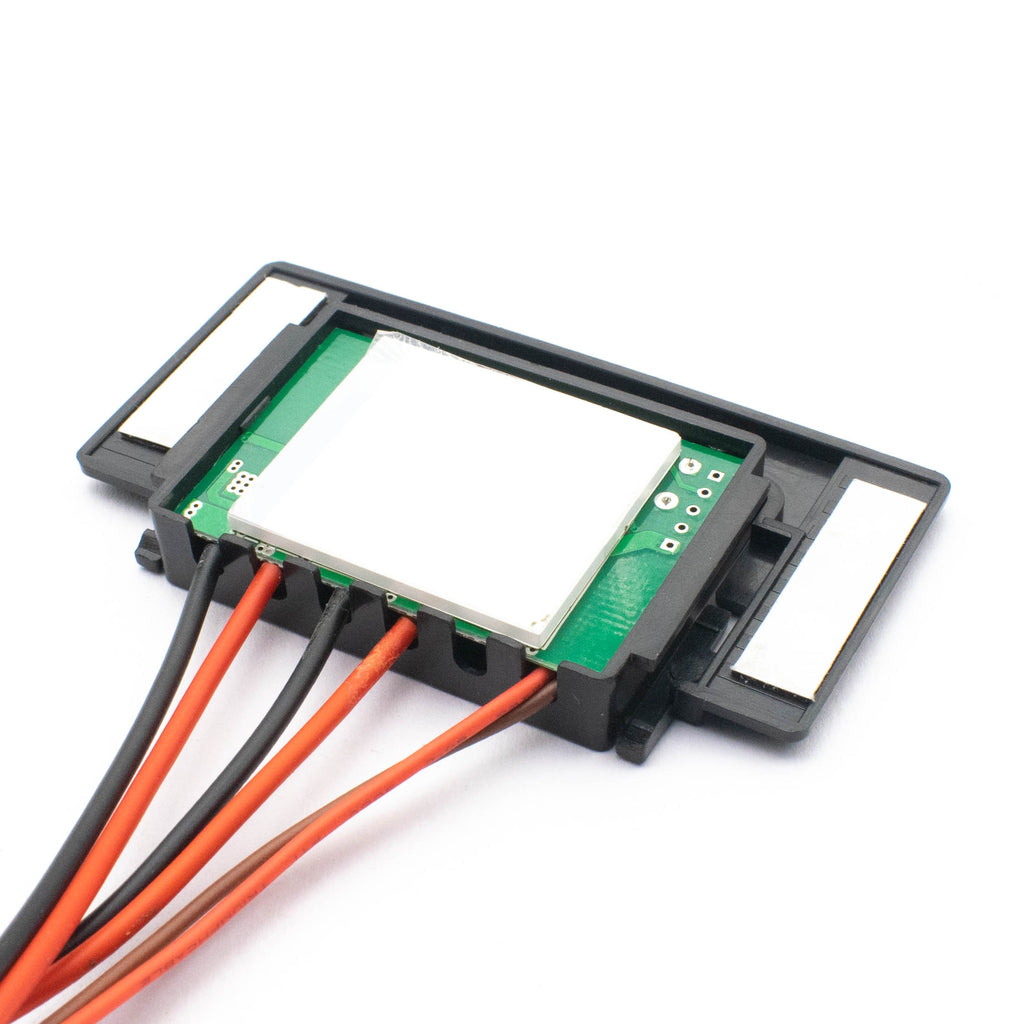

Touch Control Sensor Switch for Mirror Light can be powered using a simple 12V DC supply. It realizes the switch control function to control up to two-colour LED lights from a single touch. The product is specifically designed for smart light mirrors. The product is reliable, easy to install, sensitive to touch, and has large output power. It is suitable for the control of various mirror lights and other electrical appliances. The product is reliable, easy to install, sensitive to touch.
- On powering the 12V DC supply, the backlight of the touch control sensor switch becomes ON.
- After that, when you touch the touch sensor, the LEDs start glowing.
- On long press, the intensity of LEDA+ increases or decreases.
- The switch also has one 12V output through which you can connect a 12V fan or led light, but we can’t change the voltage of this output.
- The touch Control sensor switchboard is designed with a backlight source, and the backlight source and the touch switch is designed as one body. When the power supply and the control switch are connected and power on, the backlight source on the switchboard is lit up. The backlight source is always on, and a long time press can turn it off.
Features:
- Touch Control Sensor Switch works on 12V.
- Color LED can be made ON-OFF just by a single touch.
- It’s straightforward to install, just by joining the positive and negative terminal to power supply and LED+, LEDA- with the positive and negative terminals of LED.
- Sensitive to touch
- Lighting control
- Sleep mode Long touch to turn off button backlight
Specification
| Operating Voltage | 12V |
| Model | CY-D12TOAP-03 |
| Rated Current | 4A |
| Power | 48W |
| Size | 33.8x53.1x9.8mm |
