Description

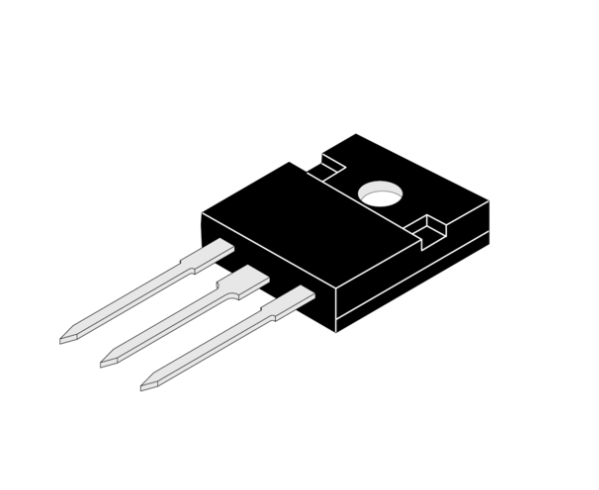

Its CSC5200 NPN Silicon Epitaxial Transistor‚ The NPN transistor consists of two n-type semiconductors that sandwich a p-type semiconductor. Here‚ electrons are the majority charge carriers‚ while holes are the minority charge carriers. Its package is TO-3PL‚ It's used in power amplification circuits ‚ Switching devices and general switching applications.
Application
- Power Amplifier Applications
- Recommended for 100W High-fidelity Audio Frequency Amplifier Output
Features:
- Its package is TO-3PL
- Its voltage is 230V
- Its current 15A
- Its recommended to use for the 100W high fidelity audio amplifiers
| Specifications | |
|---|---|
| Common-Emitter Saturation Voltage | 230V |
| Collector Current | 15A |
| Output Capacitance | 145pF |
| Part Number | CSC5200 |
| Operating Temperature Range | -55 to 150 |
| Mounting Style | Through Hole |
| Power Dissipation | 180W |
| Current | 15A |
| Voltage | 230V |
| Type | NPN Transistor |
| Package | TO-3PL |
