Description

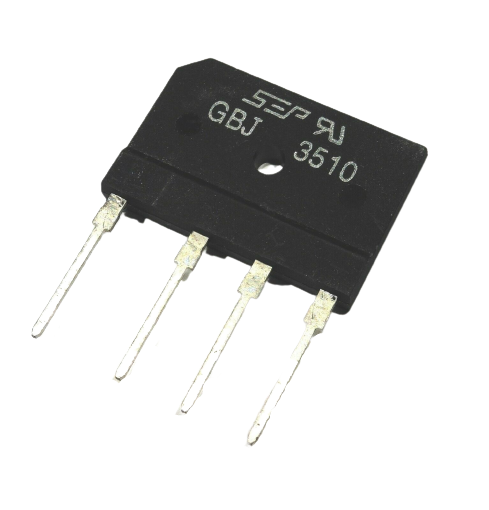

A bridge rectifier diode frequently used in single-phase applications is the GBJ3510. Since this IC can sustain an AC voltage of up to 700V, it can be employed in a variety of applications. This IC can tolerate a maximum DC current of 35A. This IC features a low forward voltage loss of 1.1V and a reverse breakdown value of 1000V. It features a high surge current capacity of 400A and great efficiency. This can be a decent option if you're seeking for a small IC for rectification applications.
Features
- Glass Passivated Die Construction
- High Case Dielectric Strength of 2500 VRMS
- Low Reverse Leakage Current
- Surge Overload Rating to 400A Peak
- Ideal for Printed Circuit Board Applications
Specification
| Model | GBJ3510 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage V(RMS) | 700 V |
| Average Forward Rectified Output Current | 35 A |
| Peak Reverse Current at 25°C | 10µA |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Quantity | 250 |
| Country of Origin | China |
