Description

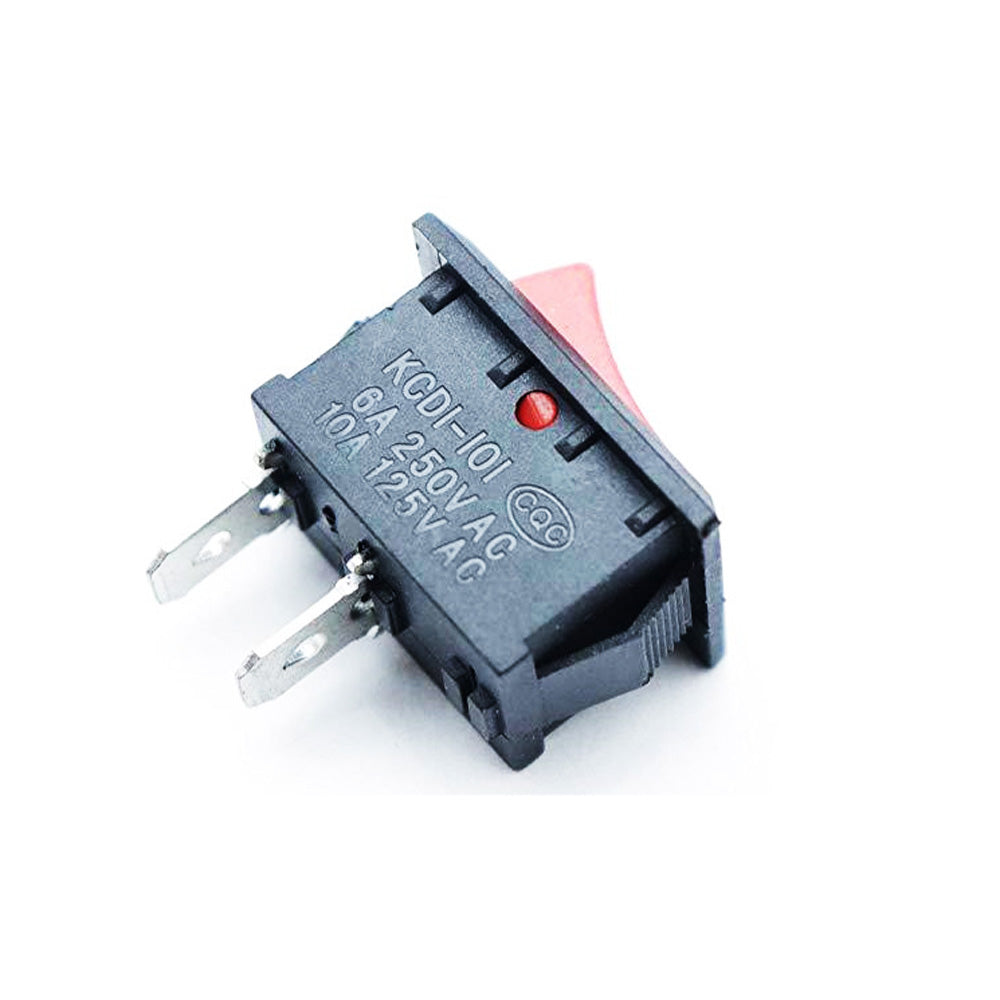

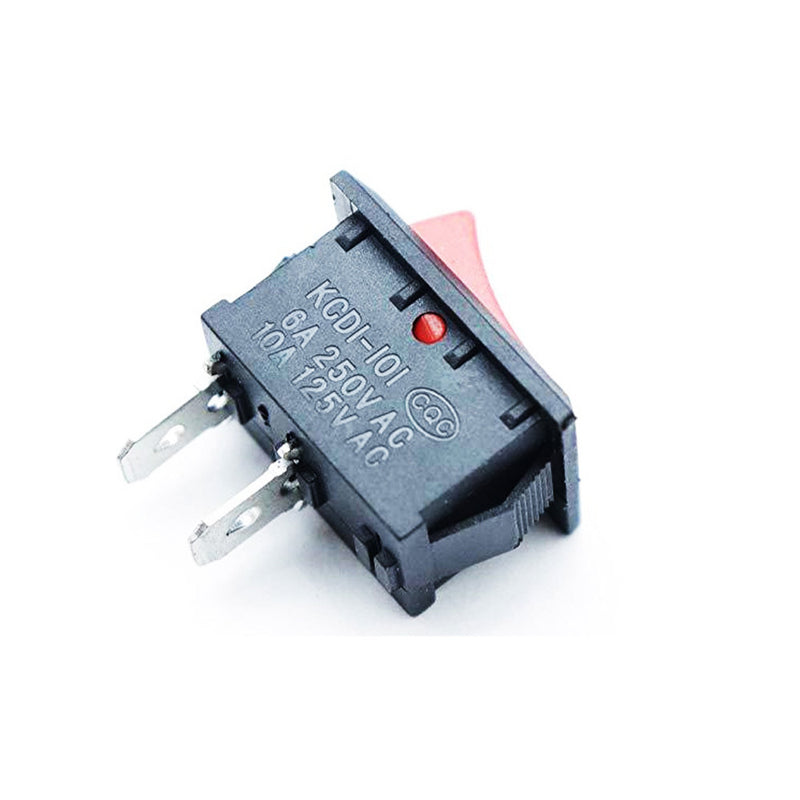

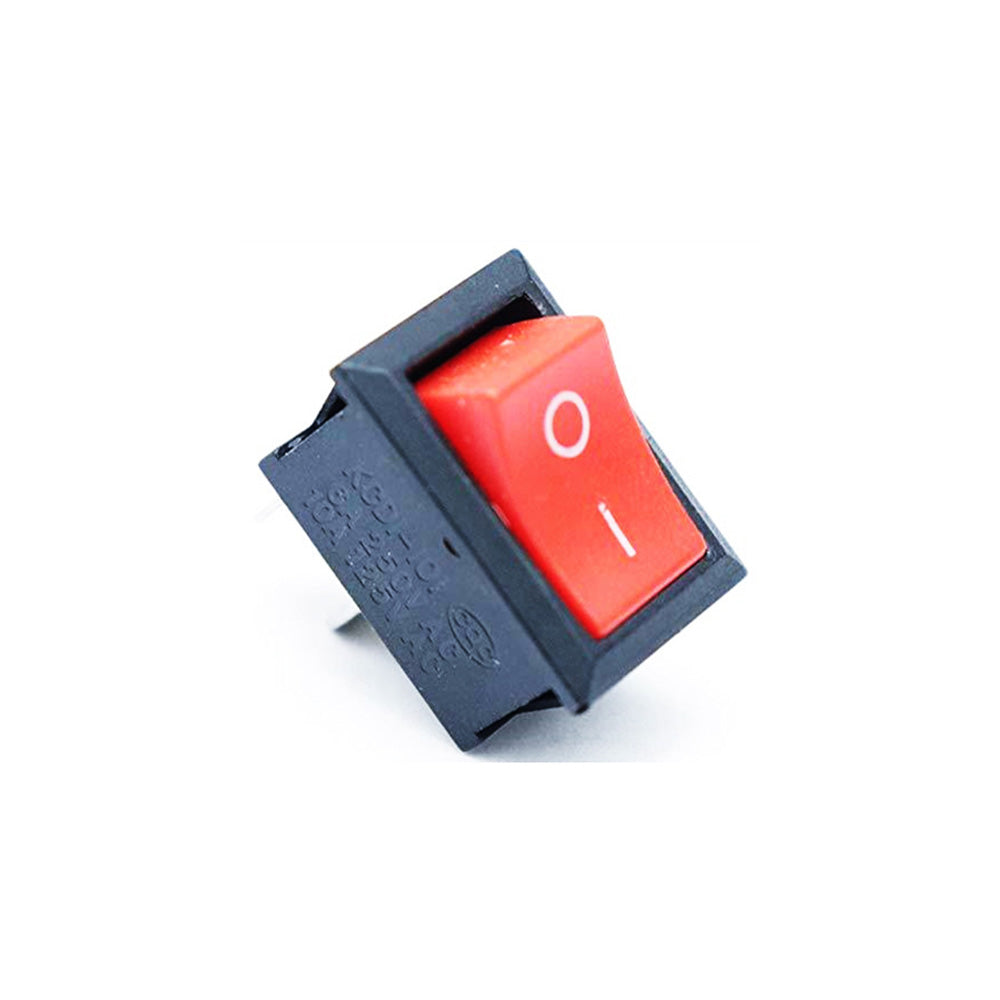

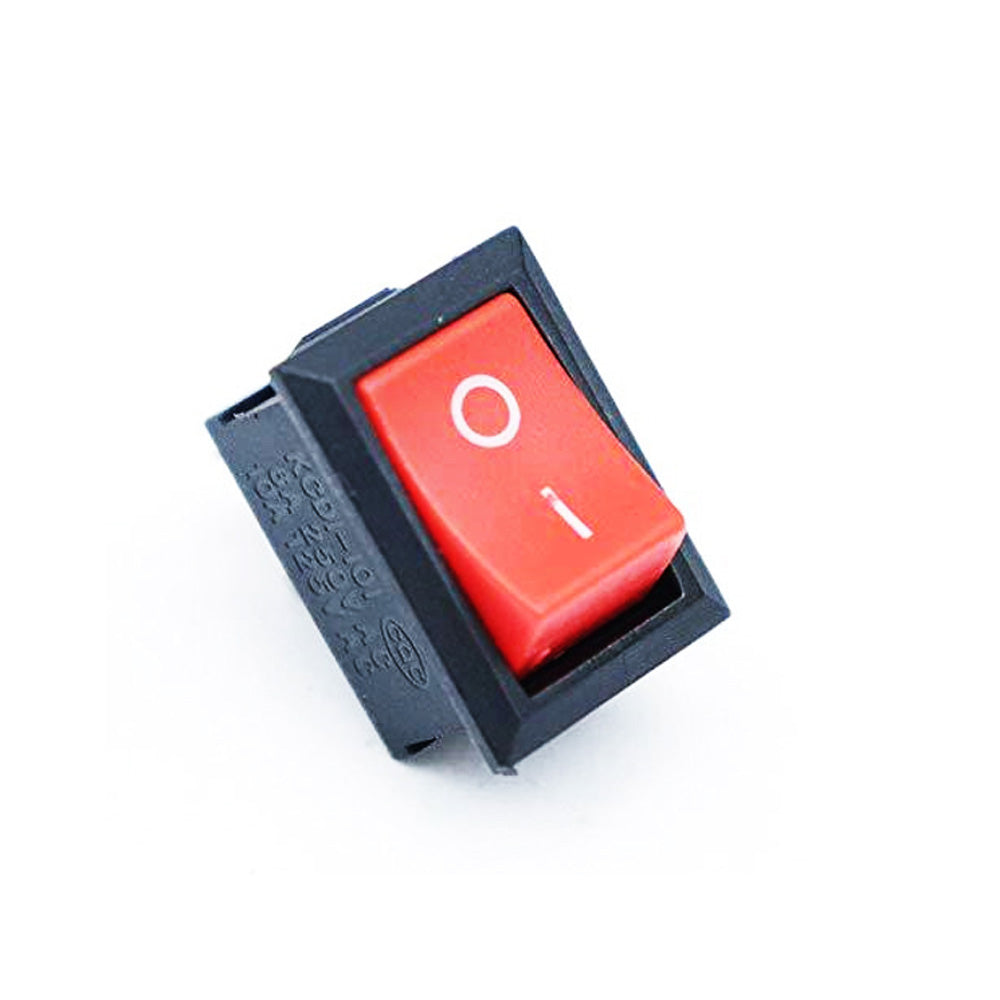

This Rocker switch works on SPST (Single Pole Single Throw) mode. This switch is rated for a load of 6A 250V and 10A 125V. The contact resistance of the switch is ≤ 20 MΩ and insulation resistance of the switch is ≥100MΩ. SPST Round Rocker switches have two positions which are ON and OFF. To make identification of the position of the button easy ON and OFF positions are clearly marked on the button as I and O respectively. Dimensions are L 20.5 mm, x W 14 mm x H 20 mm.
Specifications
| Voltage and Current Rating | Max 6A at 250VAC |
| Switching Mode | ON-OFF |
| Structure | SPST |
| Colour | Red and Black |
| Contact Resistance | ≤ 50 MΩ |
| Insulation Resistance | ≥100MΩ |
| Number of Pins | 2 |
| Dimension (LxWxH) | 20.5x14x20 (mm) (Including Pins Height) |
| Country of Origin | China |
