Description

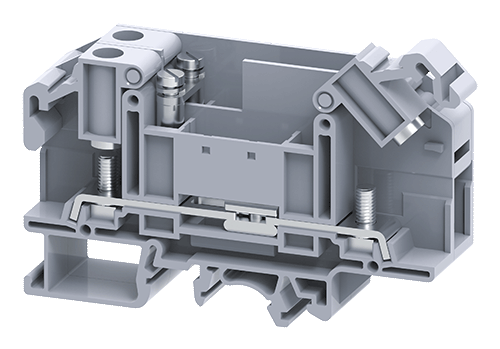

The Connectwell STH4DTSH is a Hinge Type Disconnect and Test Shorted Terminal Block. STH4DTSH 6 mm² M4 Stud Disconnect & Test shorted Terminal Block - with captive nuts. These Terminal Blocks are recommended for applications in which the connections are subjected to high vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block's flat current bar. The fastening nut is always held in place by the hinged plastic carrier. Lift the Hinged Carrier to insert the lugs, then snap it back into place. The nut can then be tightened to finish the connection. The hinged design of the Terminal Blocks, in addition to shrouding the live parts and providing IP20 protection, saves significant time in wiring.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 34A |
|
Tightening Torque |
1.2 Nm |
| Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M4 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
56.4mm |
| Height with DIN 35 * 15mm rail |
59mm |
|
Height with DIN 35 * 7.5mm rail |
52.2mm |
|
Length |
86mm |
|
Width(Thickness) |
22mm |
| Country of Origin | China |
