Description

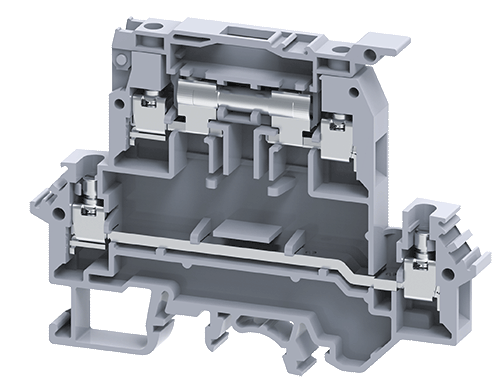

The Connectwell DDFL4UE440V is a 4mm² 2 Level Ø5X20mm 6.3A Screw Clamp 440V Fuse Terminal block. These Terminal Blocks have a specially designed circuit that illuminates in the event of a top-level fuse blowout.
Specifications
| Housing Material | Polyamide |
| Rated Current | 6.3A |
|
Tightening Torque |
0.5 Nm |
| Product Function |
Double Level |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
5 KV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
71.4mm |
| Height with DIN 35 * 15mm rail |
74.3mm |
|
Height with DIN 35 * 7.5mm rail |
67.4mm |
|
Length |
88mm |
|
Width(Thickness) |
8mm |
| Country of Origin | China |
