Description

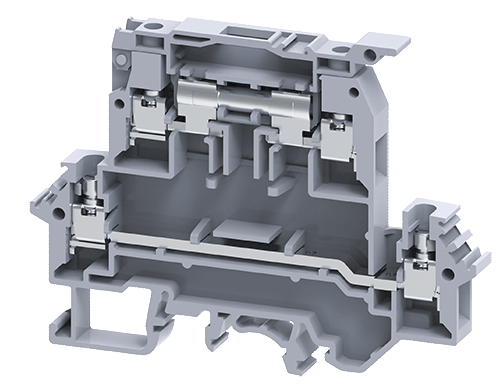

The Connectwell DDFL4U is a 4mm² 2 Level Ø5X20mm 6.3A Screw Clamp Fuse Terminal block. These blocks have fuse carrier links on top and a separate feed through a terminal connection on the bottom.
Specification
| Model | DDFL4U |
| Rated Voltage | 800 V |
| Rated Current | 6.3 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Double Level |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 5 kV |
| Pollution Degree | 3 |
| Manufacturer | Connectwell |
| Height with DIN 32 rail | 71.4 mm |
| Height with DIN 35 * 15mm rail | 74.3mm |
| Height with DIN 35 * 7.5mm rail | 67.4mm |
| Length | 88mm |
| Width (Thickness) | 8mm |
| Country of Origin | China |
