Description

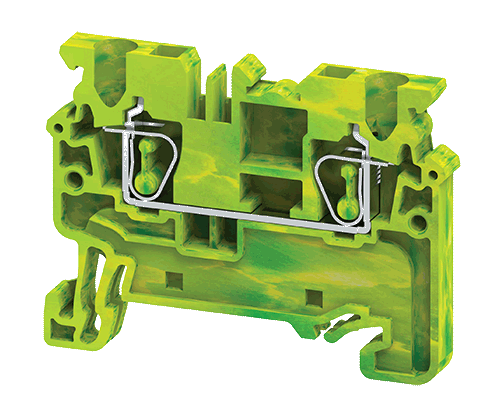

The Connectwell CXG2.5 is a 2.5 sq. mm Spring Clamp Grounding Terminal block. These Terminal Blocks have specially designed alloy feet that contribute to very low contact resistance and vibration-proof grounding with the DIN rails. As industry standards, they are color-coded green/yellow.
Specifications
| Housing Material | Polyamide |
| Product Function | Earthing, Grounding |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Operated by |
Screw Driver |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
45.2mm |
|
Height with DIN 35 * 7.5mm rail |
37.6mm |
|
Length |
49.7mm |
|
Width(Thickness) |
5mm |
| Country of Origin | China |
