Description

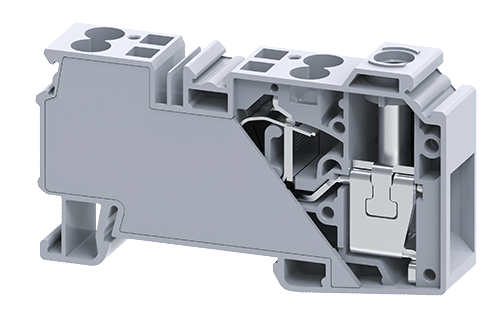

The Connectwell CXDB35/10 is a Modular Distribution Block with 10mm² Output connections and 35mm² Input connections. The CXDB distribution block family is an excellent choice for a simplified distribution system. The incoming cable is connected to the block via a screw clamp. All of the terminals are internally connected and offer multiple connections for the incoming wires. The incoming connection is effectively shrouded by a protective shield.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current Input Side | 125A |
| Rated Current Output Side | 41A |
| Tightening Torque Input Side | 2.5 Nm |
| Product Function | Compact Distribution Block |
|
Wire Entry Orientation |
Top |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Operated by |
Screw Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
54.3mm |
|
Height with DIN 35 * 7.5mm rail |
46.8mm |
|
Length |
81.6mm |
|
Width(Thickness) |
16mm |
| Country of Origin | China |
