Description

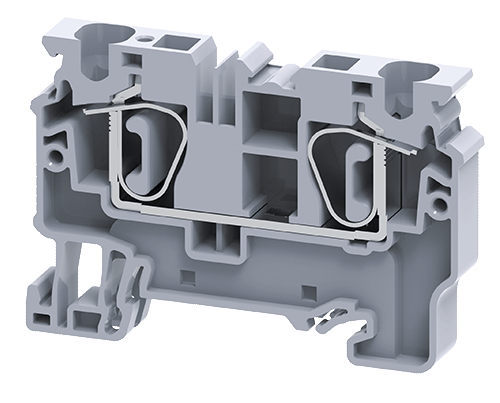

The Connectwell CX6 is a 6 sq. mm Feed Through Spring Clamp Compact Terminal Block in Grey color. The Spring Clamp is operated by inserting a screwdriver into an opening in the spring clamp to gain access to the wire. When the screwdriver is removed, the inserted wire is clamped to the current bar.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 41A |
| Product Function | Feed Through |
|
Wire Entry Orientation |
Top |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Operated by |
Screw Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
50mm |
|
Height with DIN 35 * 7.5mm rail |
42.5mm |
|
Length |
62.1mm |
|
Width(Thickness) |
8mm |
| Country of Origin | China |
