Description

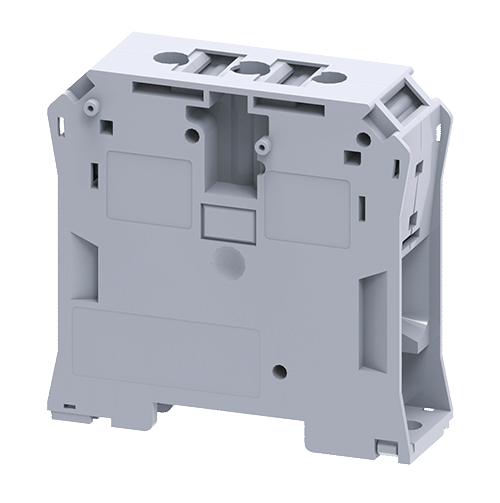

The Connectwell 95/120 sq. mm is a Feed Through Terminal Block with Allen Screws CTS95/120N Feed Through Terminal Blocks are the most Versatile terminals for control, Automation, Instrumentation, and Power Distribution applications. With the aid of a screwdriver, a specially designed flexible foot allows for simple mounting and dismounting from the Din rail. Marker-holding recesses on these Terminal Blocks accept marking tags for circuit identification. Shorting links/sleeves and screws can be used to make a cross-connection.
Specifications
|
Rated Voltage |
1000 V |
|
Rated Current |
269 A |
|
Tightening Torque |
6 Nm |
|
Housing Material |
Polyamide |
|
Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibility |
DIN 35/DIN 35-15 Rail |
|
Screw Size |
M8 |
|
Operated by |
Allen Key |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
1 |
Dimensions
|
Height with DIN 35 x 15 mm rail |
90.5 mm |
|
Height with DIN 35 x 7.5 mm rail |
83 mm |
|
Length |
84.5 mm |
|
Width (Thickness) |
27 mm |
| Country of Origin | China |
