Description

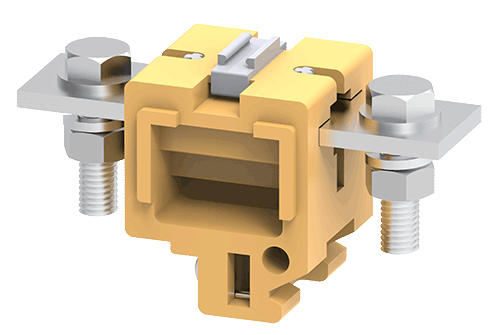

The Connectwell CTS70L is a 70 mm² Feed Thru Nut Bolt Melamine Terminal Block with a locking nut. These Terminal Blocks are ideal for applications that require wires with a large cross-section. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block's flat current bar. Every Terminal Block must have a partition or isolation plate. The Protective Cover is intended to be installed in a slot in the Partition Plate.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Melamine |
| Tightening Torque | 6 Nm |
| Rated Current | 192A |
| Product Function | Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32 Rail |
|
Screw Size |
M8 |
| Operated by |
Nut Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
52mm |
|
Length |
92mm |
|
Width(Thickness) |
40mm |
| Country of Origin | China |
