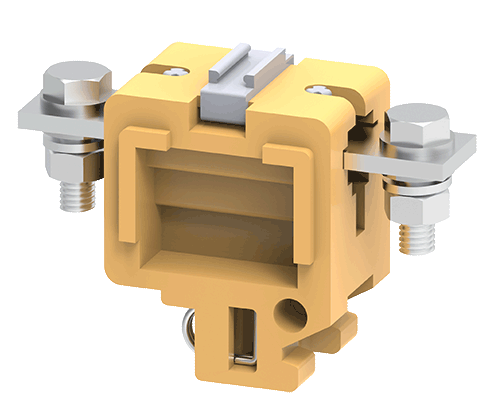

Connectwell CTS35L 50 sq mm Feed Thru Bolt/Nut Melamine Terminal Block

Save 19%
Sold By: HatchnHackSKU: DP-35

Price:
Sale price₹ 157.00 Regular price₹ 195.00

Tax included Shipping calculated at checkout

Out of stock

Description

The Connectwell CTS35L is a 50 sq.mm, Bus Bar Type Terminal Blocks with locking nut in Khaki color. These Terminal Blocks are ideal for applications that require wires with a large cross-section. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block's flat current bar. Terminal Blocks are available in sizes ranging from 16 sq. mm to 120 sq. mm. CTS35LS Terminal Blocks have a threaded current bar, which eliminates the need for locking nuts. Every Terminal Block must have a partition or isolation plate. The Protective Cover is intended to be installed in a slot in the Partition Plate.

Specifications
Rated Voltage 1000V
Housing Material Melamine
Tightening Torque 3 Nm
Rated Current 150A
Product Function Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 32 Rail

Screw Size

M6

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 32 rail

52mm

Length

75mm

Width(Thickness)

28mm

Country of Origin China
