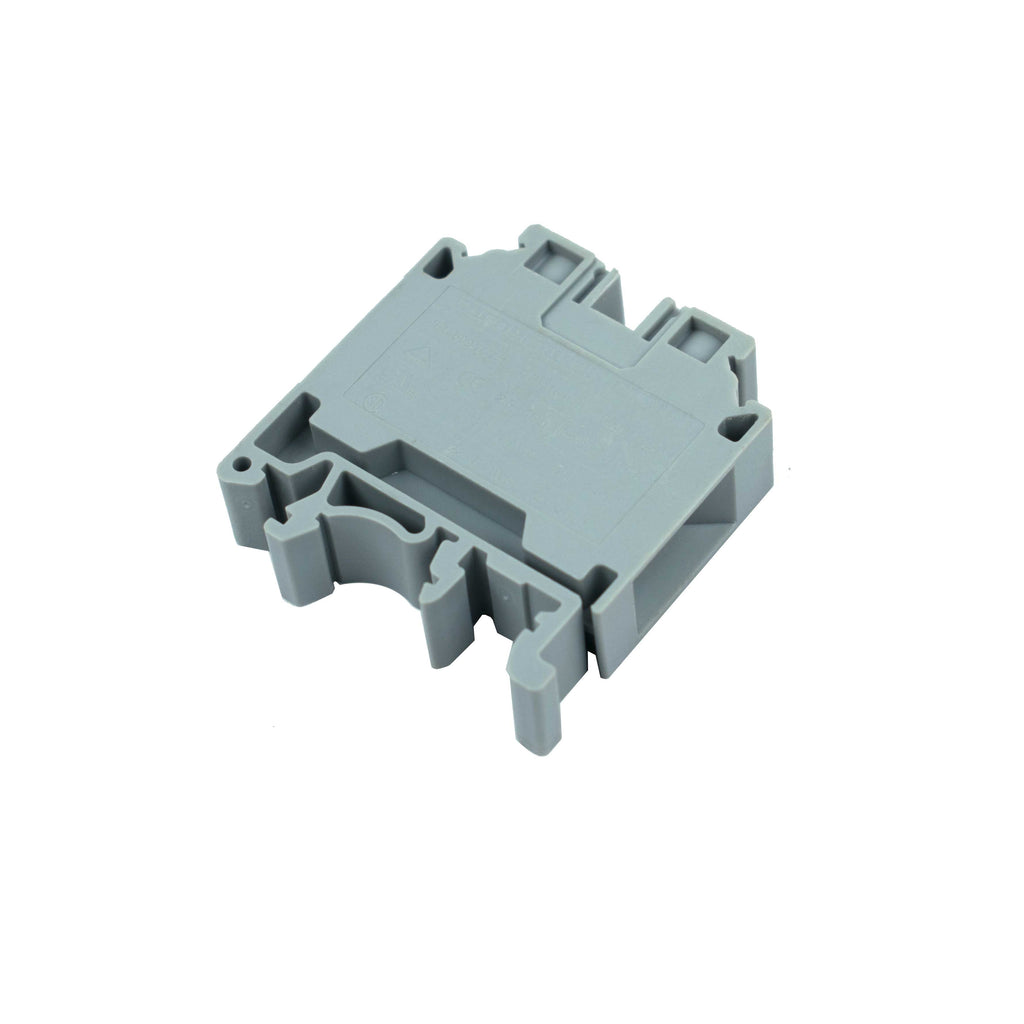

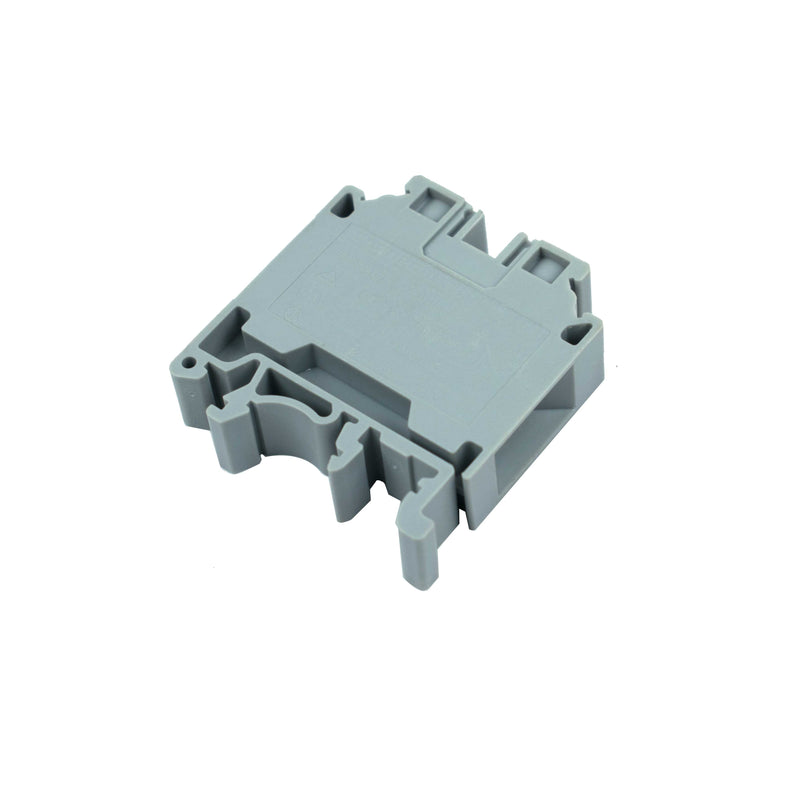

Connectwell CTS16U 16sq. mm Feed Through Screw Clamp Terminal

Save 19%
Sold By: HatchnHackSKU: DPA28

Price:
Sale price₹ 31.55 Regular price₹ 39.12

Tax included Shipping calculated at checkout

Out of stock

Description

To feed through power, signal, and data is the classical requirement in electrical engineering and panel building.The distinguishing characteristics are the insulating material, the connection system, and the layout of the terminal blocks. One or more conductors can be joined together or connected using a feed-through terminal block. They might have one or more connection levels that are isolated from one another or on the same potential. The most versatile terminals for control, automation, measurement, and power distribution applications are 16 sq.mm feed through terminal blocks. With the aid of a screw driver, a flexible foot with a particular design makes mounting and unmounting from the Din Rail simple. In order to receive marking tags for circuit identification, these Terminal Blocks contain marker holding holes. In order to create a cross connection, shorting links, sleeves, and screws are used.

Specifications

Rated Voltage

1000 V

Rated Current

76 A

Tightening Torque

1.2 Nm

Housing Material

Polyamide

Product Function

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibility

DIN32/DIN 35/DIN 35-15 Rail

Screw Size

M4

Operated by

Screwdriver

Rated Surge Voltage

8 KV

Pollution Degree

3



Dimensions
Height with DIN 32 rail 52.8 mm

Height with DIN 35 x 15 mm rail

55.5 mm

Height with DIN 35 x 7.5 mm rail

47.8 mm

Length

43 mm

Width (Thickness)

12 mm

Country of Origin China
