Description

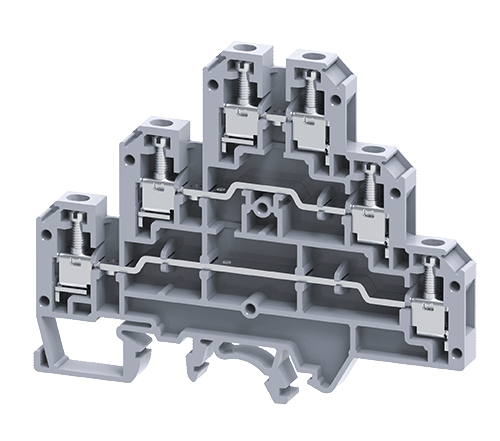

The Connectwell CTL2.5U 2.5 sq. mm 3-Level Screw Clamp Terminal Blocks. CTL2.5U Terminal Blocks are an excellent choice for control systems involving sensor and actuator applications. The simplified three-level connections greatly increase the circuit's wiring density. The top level of the CTL2.5U terminal block connects signal wires, while the middle and bottom levels connect positive and negative potentials. In addition to the traditional white color, marking tags in blue and red are recommended for effective identification.
Specifications
|
Related voltage |
500V |
|
Rated Current |
24A |
|
Tightening Torque |
0.4 Nm |
| Housing Material |
Polyamide |
| Product Function |
Triple Level |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M2.5 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
4 KV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
73.8mm |
| Height with DIN 35 * 15mm rail |
75.6mm |
|
Height with DIN 35 * 7.5mm rail |
68mm |
|
Length |
84mm |
|
Width(Thickness) |
6mm |
| Country of Origin | China |
