Description

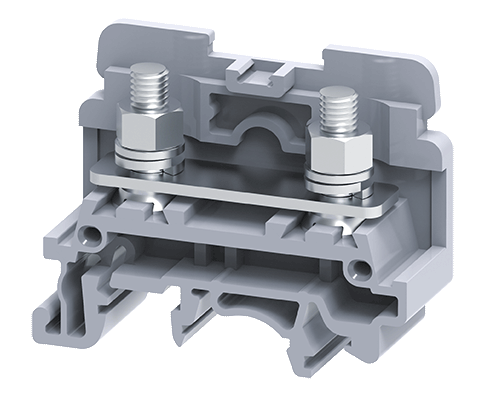

The Connectwell CSTSN5U is a 16 sq. mm Stud Type Terminal Block in Grey color, This nut driver-operated M5 sized Stud Type Terminal Blocks, with Universal Mounting Possibility. These Terminal Blocks are recommended for applications in which the connections are subjected to high vibrations. The wire is crimped to a ring/fork type Lug (Ferrule) and screwed onto the Terminal Block's flat current bar. Terminal Blocks are available in sizes ranging from 1.5 to 16 sq mm. External shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 76A |
|
Tightening Torque |
2 Nm |
| Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M5 |
|
Operated by |
Nut Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
46.3mm |
| Height with DIN 35 * 15mm rail |
48mm |
|
Height with DIN 35 * 7.5mm rail |
40.7mm |
|
Length |
50mm |
|
Width(Thickness) |
17mm |
| Country of Origin | China |
