Description

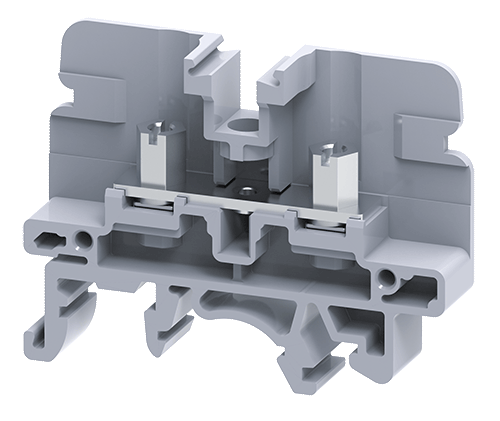

The Connectwell CSB3/N3U is a 6mm² M3 sized Stud/Bolt type Terminal Blocks, suitable for operation with a screwdriver and nut driver. This Terminal Block is recommended for applications involving connections that are subjected to high vibrations. The wire is crimped to a ring/fork type lug (ferrule) and screwed onto the Terminal Block's flat current bar. Internal shorting links can be used to achieve cross-connection. To completely encase these assemblies, it is advised to use Protective Covers made of transparent plastic. Wiring can be done with both a screwdriver and a nut driver.
Specifications
| Rated Voltage | 1100V |
| Rated Current | 41A |
|
Tightening Torque |
0.5 Nm |
|
Housing Material |
Polyamide |
| Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3 |
|
Operated by |
Nut Driver/Screwdriver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
43 mm |
| Height with DIN 35 * 15mm rail |
45.4 mm |
|
Height with DIN 35 * 7.5mm rail |
37.9 mm |
|
Length |
49 mm |
|
Width(Thickness) |
9 mm |
| Country of Origin | China |
