Connectwell CP4 4 sq.mm Push In Feed Through Terminal Blocks

Save 20%
Sold By: HatchnHackSKU: DP-26

Price:
Sale price₹ 23.50 Regular price₹ 29.20

Tax included Shipping calculated at checkout

Out of stock

Description

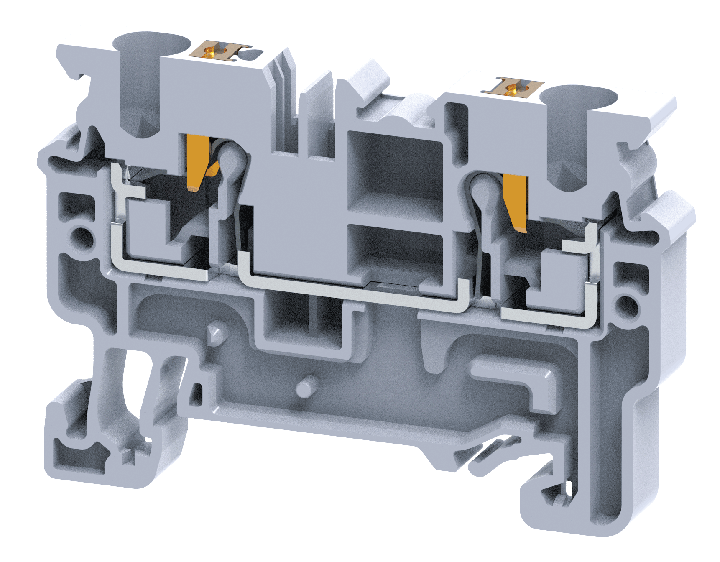

The Connectwell CP4 is a 4 mm² Feed Thru Push in Terminal Block in Grey color. The CP series Push-In Terminal Blocks are the next generation of compact Terminal Blocks. According to IEC standards, this series of Terminal Blocks has a 1000V rating. The new CP series terminals have a much wider wire termination range. To use the flexible cable without a lug for connections, press the top push button. To make connections, the lugged cable can be pressed directly into the clamp.


Specifications
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 32A
Standard Color Grey
Product Function Feed Through

Wire Entry Orientation

Top

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

45.75mm

Height with DIN 35 * 7.5mm rail

38.25mm

Length

54.8mm

Width(Thickness)

6mm

Country of Origin China
