Description

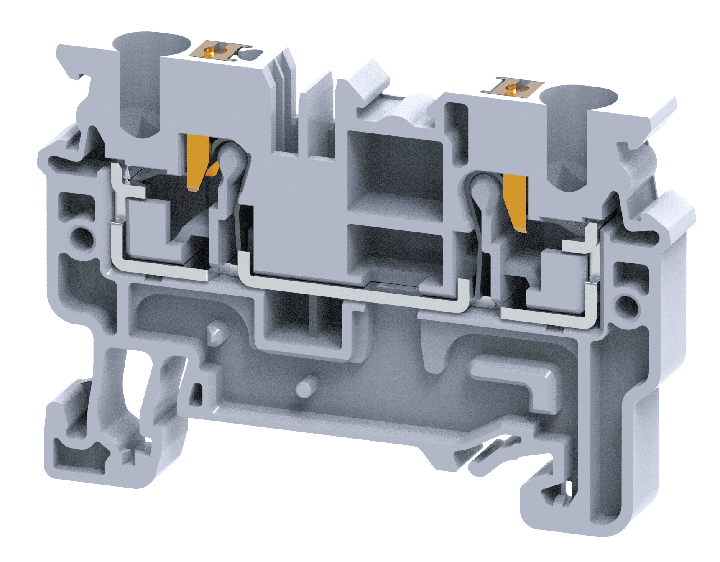

The Connectwell CP4 is a 4 mm² Feed Thru Push in Terminal Block in Grey color. The CP series Push-In Terminal Blocks are the next generation of compact Terminal Blocks. According to IEC standards, this series of Terminal Blocks has a 1000V rating. The new CP series terminals have a much wider wire termination range. To use the flexible cable without a lug for connections, press the top push button. To make connections, the lugged cable can be pressed directly into the clamp.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 32A |
| Standard Color | Grey |
| Product Function | Feed Through |
|
Wire Entry Orientation |
Top |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
45.75mm |
|
Height with DIN 35 * 7.5mm rail |
38.25mm |
|
Length |
54.8mm |
|
Width(Thickness) |
6mm |
| Country of Origin | China |
