Description

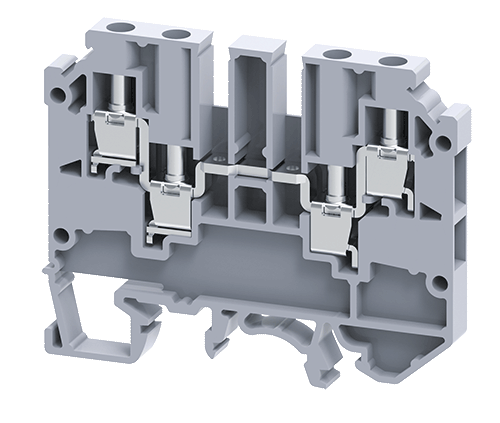

The Connectwell CMC2-2 is a 4 sq. mm Multiple Connection Terminal Block with 4 connection points. These blocks are used to connect multiple wires in a single Terminal Block, eliminating the reliability issues that can occur when connecting multiple wires in
a single Terminal Block.
Specifications
|
Rated Voltage |
630 V |
|
Rated Current |
32 A |
|
Tightening Torque |
0.5 Nm |
|
Housing Material |
Polyamide |
|
Product Function |
Multiple Connection |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibility |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 32 rail |
58.7 mm |
|
Height with DIN 35 x 15 mm rail |
60.5 mm |
|
Height with DIN 35 x 7.5 mm rail |
53.4 mm |
|
Length |
65 mm |
|
Width (Thickness) |
6 mm |
| Country of Origin | China |
