Description

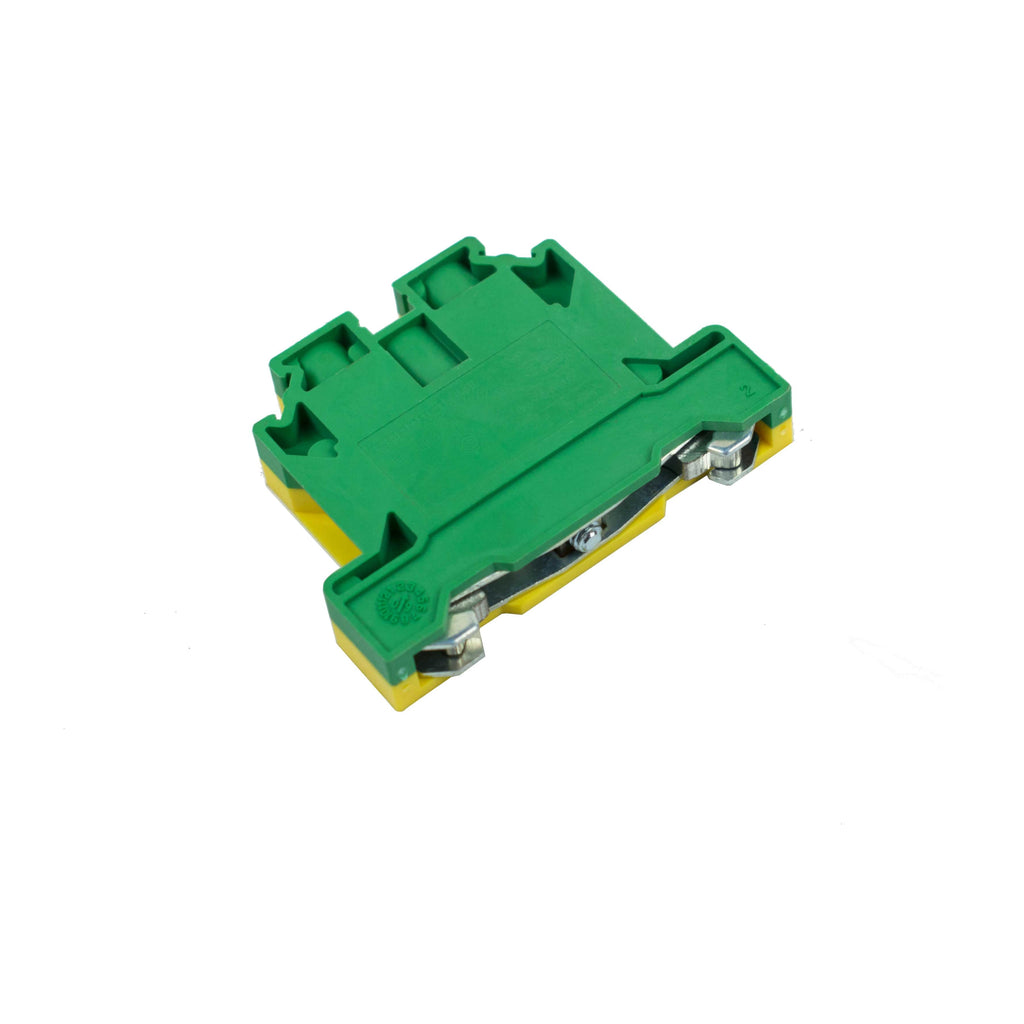

These Terminal Blocks are used for Grounding / Earthing Wires. They are Green-Yellow color coded as per industry standard. They have the same top profile as their respective feed through Terminal Blocks.
Specifications
|
Tightening Torque |
0.8 Nm |
|
Housing Material |
Polyamide |
|
Product Function |
Earthing/Grounding |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibility |
DIN 35/DIN 35-15 Rail |
|
Screw Size |
M3.5 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 KV |
|
Pollution Degree |
3 |
Dimensions
|
Height with DIN 35 x 15 mm rail |
55.8 mm |
|
Height with DIN 35 x 7.5 mm rail |
48.2 mm |
|
Length |
54.5 mm |
|
Width (Thickness) |
8 mm |
| Country of Origin | China |
