Description

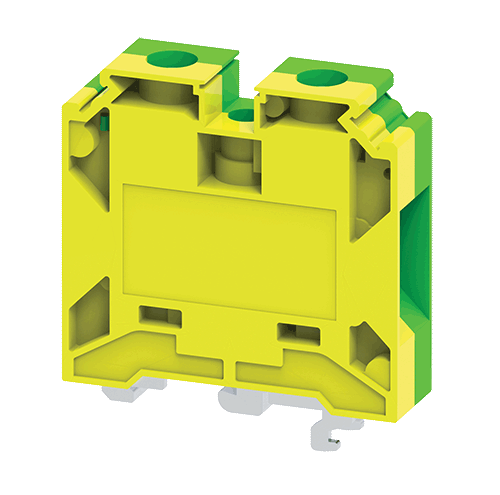

The Connectwell CGT35U is a 35 sq. mm Ground/Earth terminal block for 32/35 rail mounting. Grounding or Earthing Wires are connected to these Terminal Blocks. They are color-coded Green-Yellow in accordance with industry standards. They have the same top profile as their respective Terminal Block feeds.
Specifications
| Housing Material | Polyamide |
|
Tightening Torque |
2.5 Nm |
| Product Function |
Earthing/Grounding |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M6 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
68mm |
| Height with DIN 35 * 15mm rail |
70.5mm |
|
Height with DIN 35 * 7.5mm rail |
63.2mm |
|
Length |
58mm |
|
Width(Thickness) |
16mm |
| Country of Origin | China |
