Description

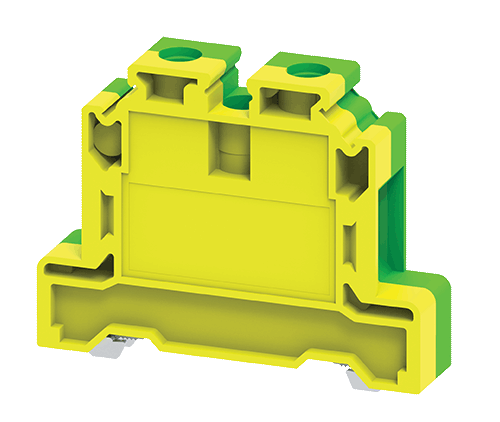

The Connectwell CGT16N is a 16 sq. mm Screw Clamp Ground/Earth Terminal block. They are color-coded Green-Yellow in accordance with industry standards. They have the same top profile as their respective Terminal Block feeds. Grounding/Earthing Wires are connected to these Terminal Blocks.
Specifications
| Housing Material | Polyamide |
|
Tightening Torque |
1.2 Nm |
| Product Function |
Earthing/Grounding |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Screw Size |
M4 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
4 KV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
56mm |
|
Height with DIN 35 * 7.5mm rail |
48.5mm |
|
Length |
55mm |
|
Width(Thickness) |
12mm |
| Country of Origin | China |
