Description

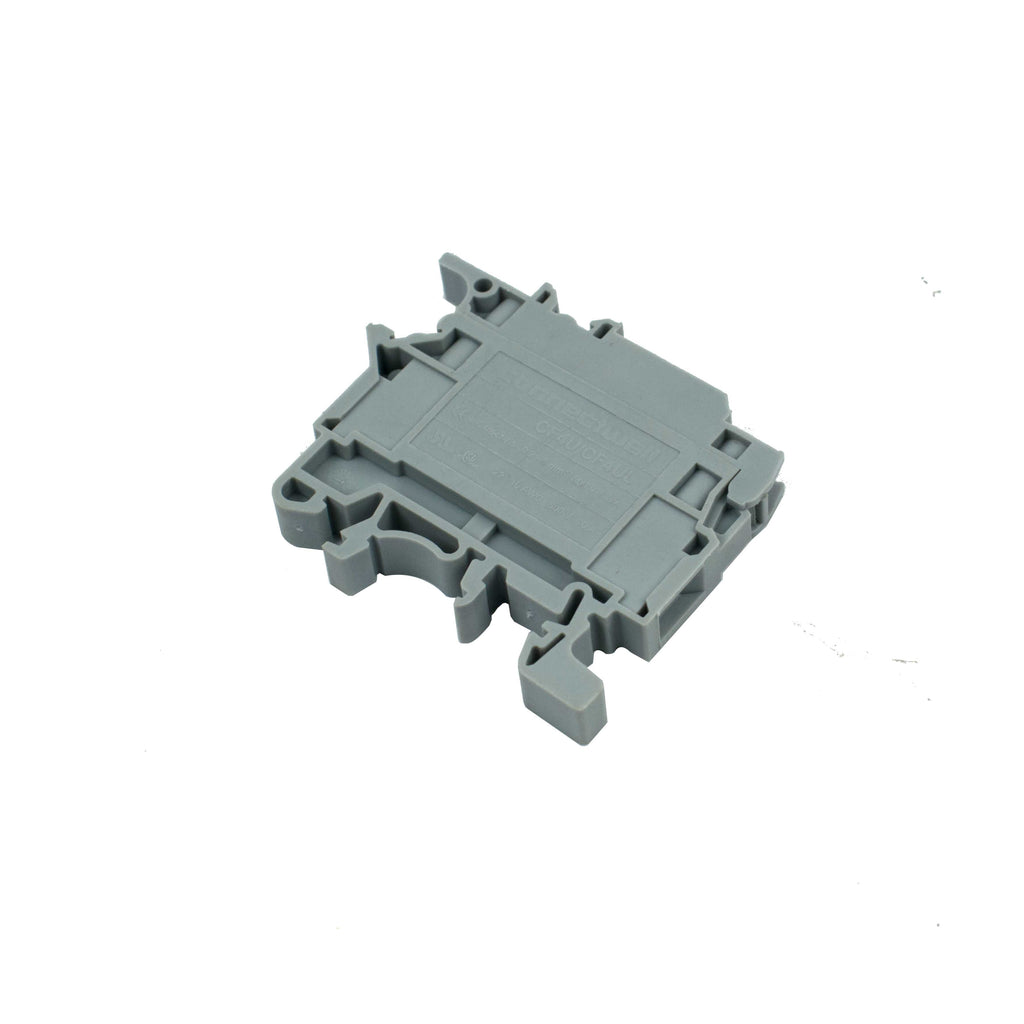

This Terminal Block is used in electrical and control systems which require fuse protection. The 4mm² Ø5X20mm FUSE SCREW CLAMP TERMINAL accepts industry standard 5 x 20 mm glass cartridge fuses. It is completely closed and does not need a separate end plate.
Specifications
| Model | CF4UL6-60V |
| Rated Voltage | 800 V |
| Rated Current | 6.3 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Single Level Fuse |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
| Manufacturer | Connectwell |
| Country of Origin | China |
