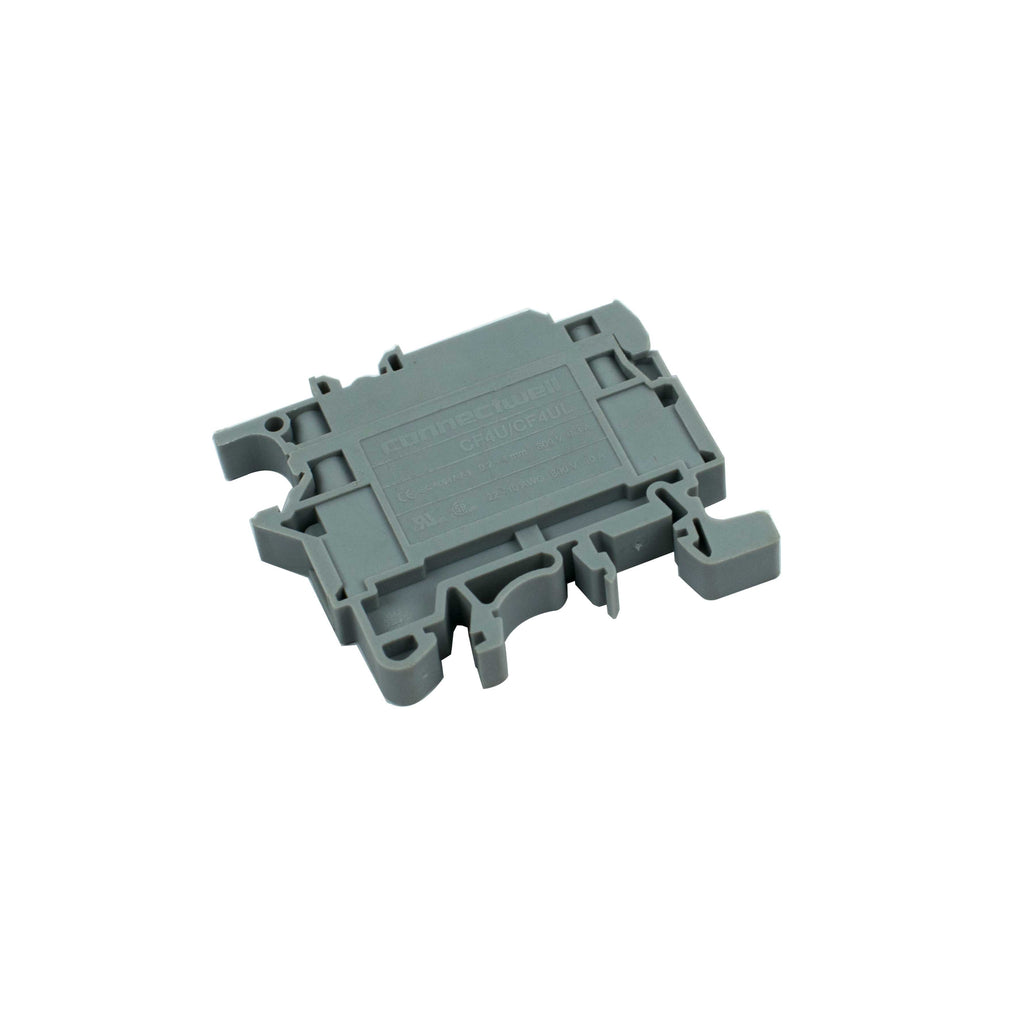

Connectwell CF4U 4 Single Level Fuse Terminal Blocks

Sold By: HatchnHackSKU: DP-15

Min Qty: 1


These Terminal Blocks are used in electrical and control systems which require fuse protection. The CF series accepts industry standard 5 x 20 mm and 5 x 25 mm glass cartridge fuses. These blocks are completely closed and do not need a separate end plate.

Rated Voltage 800V
Rated Current 6.3A
Tightening Torque 0.5Nm
Housing material Polymide
Function Single Level Fuse
Wire Entry Orientation Side Entry
Mounting Possibility 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8kV
