Description

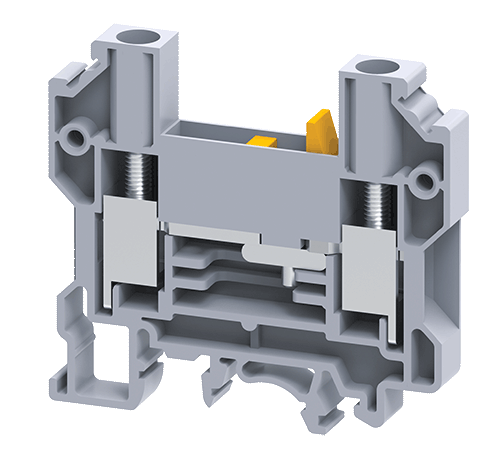

The Connectwell CDTTU is a 10mm² Disconnect & Test Terminal Block with Universal Mounting Possibility in Grey colour. These Terminal Blocks are used in circuits for measuring, controlling, and regulating. They offer a clear functional advantage for devices that include utility instruments and transformers. Disconnection in this Terminal Block is accomplished via a screwdriver-operated slide link. In disconnecting and testing terminal blocks, specially designed socket-headed screws serve as test monitoring points.
Specifications
| Rated Voltage | 800V |
| Rated Current | 57A |
|
Tightening Torque |
1.2 Nm |
|
Housing Material |
Polyamide |
| Product Function |
Sliding Type Disconnect and Test |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M4 |
|
Operated by |
Screwdriver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 32 rail |
63.7 mm |
| Height with DIN 35 * 15mm rail |
65.7 mm |
|
Height with DIN 35 * 7.5mm rail |
58.7 mm |
|
Length |
63 mm |
|
Width(Thickness) |
8mm |
| Country of Origin | China |
