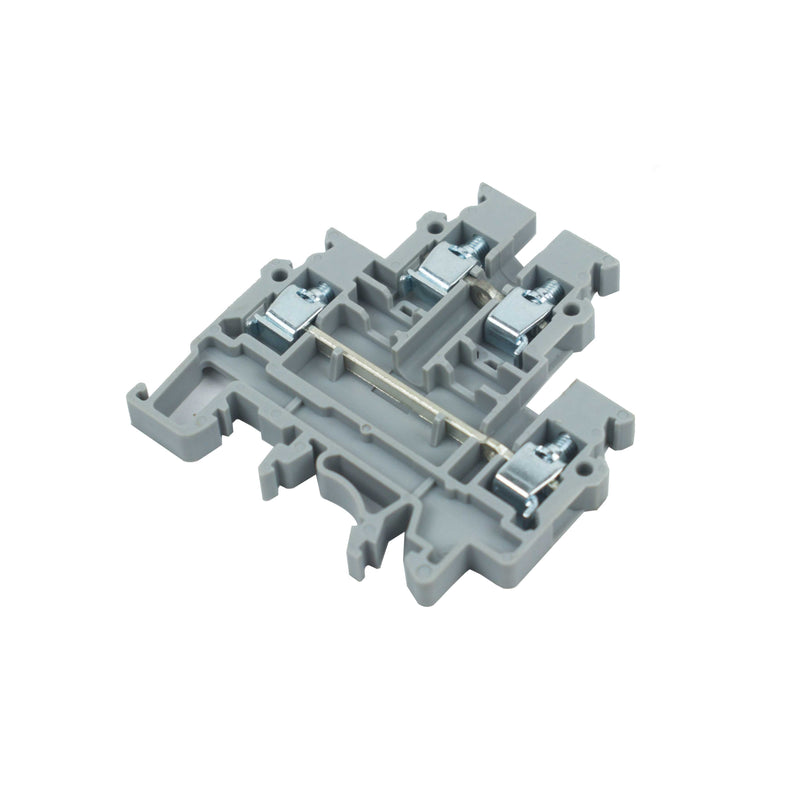

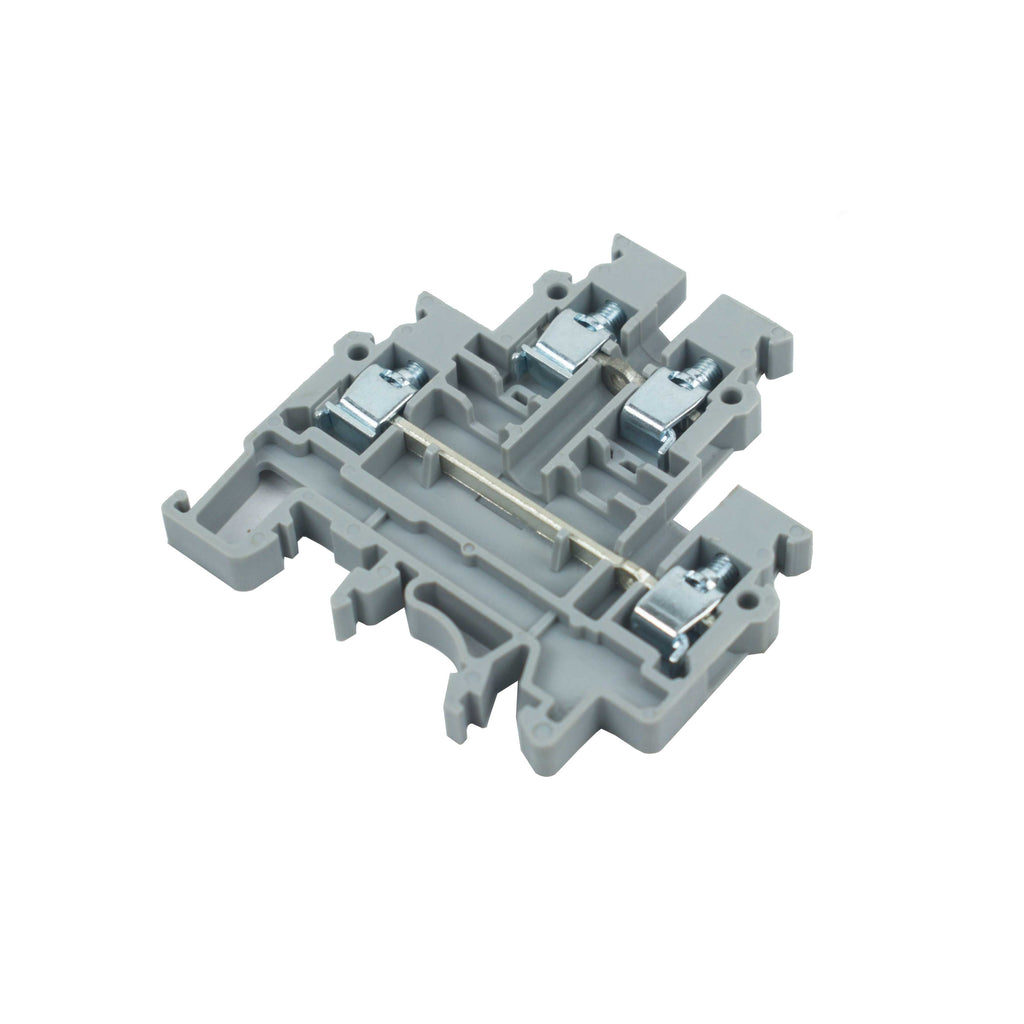

Connectwell CDL4UN 4sq. mm 2 Level Screw Clamp Terminal Block (Pack of 100)

Sold By: DP Electrical

Price:
Sale price₹ 2,589.00

Tax included Shipping calculated at checkout

Min Qty:

Description

This block is ideal for use in applications requiring high-density wiring. Interconnection / shorting is possible at both levels. CDL4UN is the newer version of the CDL4U Terminal Block. It is suited for an 800 V applications and can accommodate larger K6 marking tags.

Specifications
Rated Voltage 800 V
Rated Current 32 A
Tightening Torque 0.5 Nm
Housing Material Polyamide
Product Function Double Level
Wire Entry Orientation Side Entry
Mounting Possibility DIN 32/DIN 35/DIN 35-15 Rail
Screw Size M3
Operated by Screwdriver
Rated Surge Voltage 8 KV
Pollution Degree 3
Manufacturer  Connectwell
Quantity 100
