Description

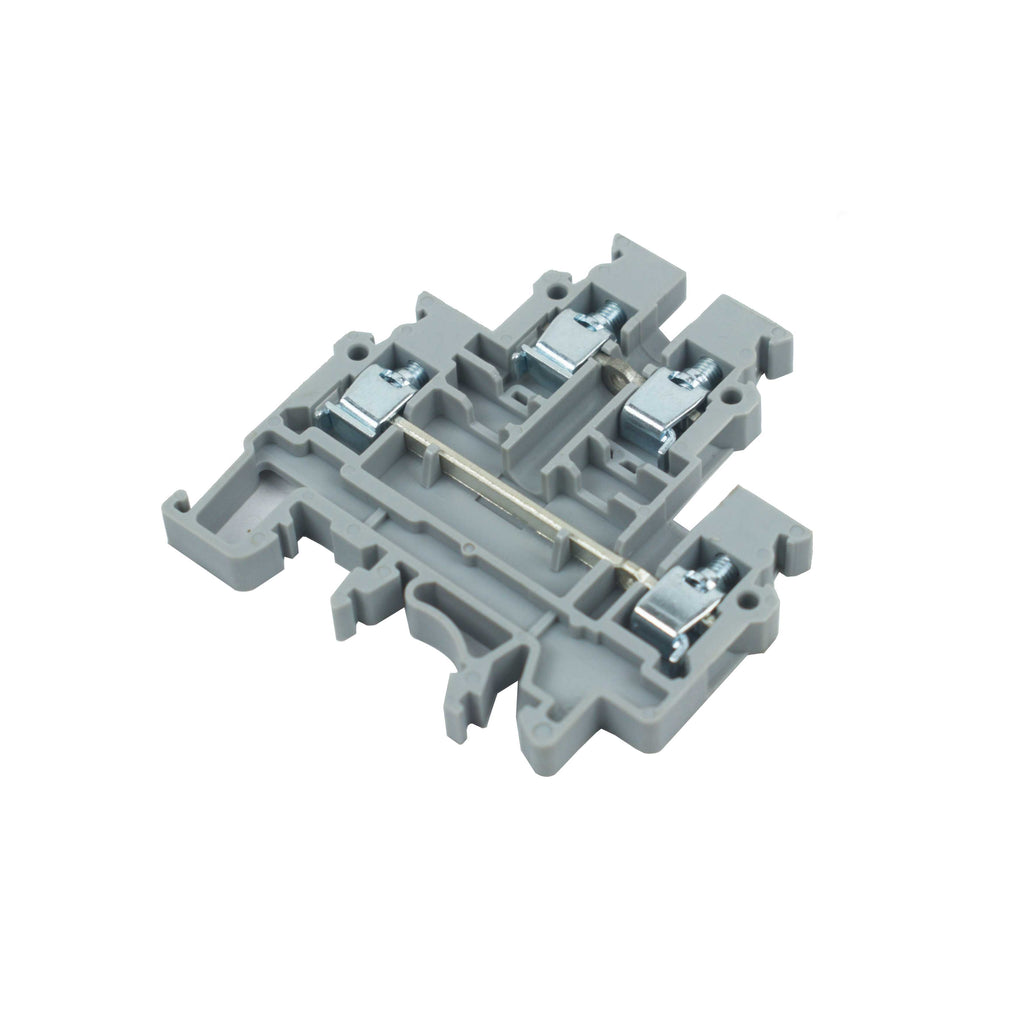

This block is ideal for use in applications requiring high-density wiring. Interconnection / shorting is possible at both levels. CDL4UN is the newer version of the CDL4U Terminal Block. It is suited for an 800 V applications and can accommodate larger K6 marking tags.
Specifications
| Rated Voltage | 800 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Housing Material | Polyamide |
| Product Function | Double Level |
| Wire Entry Orientation | Side Entry |
| Mounting Possibility | DIN 32/DIN 35/DIN 35-15 Rail |
| Screw Size | M3 |
| Operated by | Screwdriver |
| Rated Surge Voltage | 8 KV |
| Pollution Degree | 3 |
| Manufacturer | Connectwell |
| Quantity | 5 |
| Country of Origin | China |
