Description

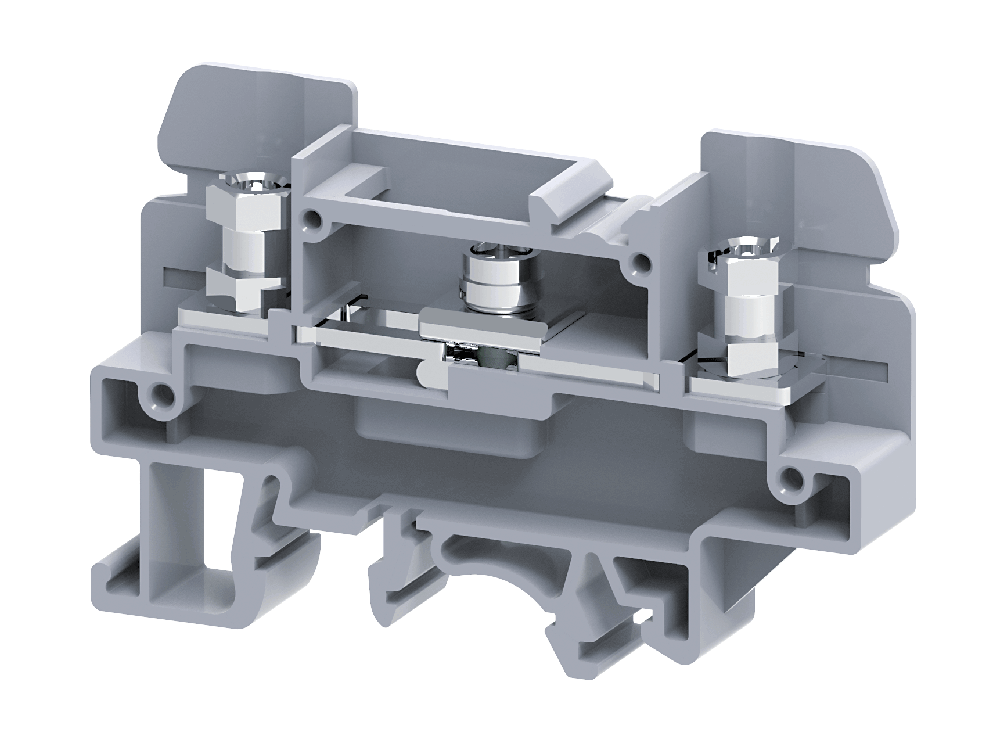

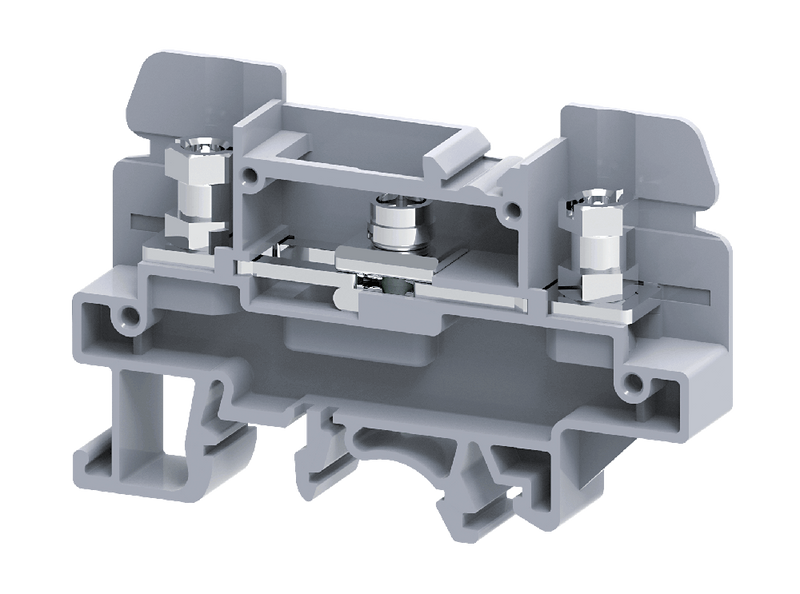

The Connectwell CBDT4UN is a 6 mm² Slide Link Disconnect Terminal Block in Grey colour. These blocks are used for measuring, controlling, regulating, and connecting current transformers. They offer a clear functional advantage for devices that include utility instruments and transformers. The central slide link is opened to disconnect the circuit. Cross-connection is possible using external shorting links.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 41A |
|
Tightening Torque |
1.2 Nm |
| Product Function |
Sliding Type Disconnect and Test |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 32/DIN 35/DIN 35-15 Rail |
|
Screw Size |
M4 |
|
Operated by |
Nut Driver/Screwdriver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height |
43.5mm |
| Height with DIN 32 rail |
49.3mm |
| Height with DIN 35 * 15mm rail |
52.2mm |
|
Height with DIN 35 * 7.5mm rail |
44.7mm |
|
Length |
67.2mm |
|
Width(Thickness) |
10.95mm |
| Country of Origin | China |
