Description

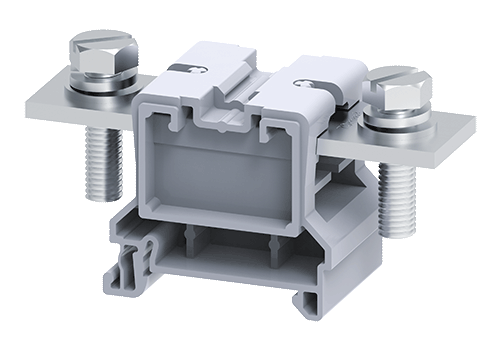

The Connectwell CBB70LS is a 70 mm² Feed through Slotted Bolt Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving wires with a large cross-section. The wire is crimped to a ring/fork lug and screwed to the Terminal Block's flat current bar.
Specifications
| Rated Voltage | 1000V |
| Housing Material | Polyamide |
| Rated Current | 192A |
|
Tightening Torque |
6 Nm |
| Product Function |
Feed Through |
|
Wire Entry Orientation |
Side Entry |
|
Mounting Possibilities |
DIN 35/DIN 35-15 Rail |
|
Screw Size |
M8 |
|
Operated by |
Nut Driver |
|
Rated Surge Voltage |
8 kV |
|
Pollution Degree |
3 |
Dimensions
| Height with DIN 35 * 15mm rail |
54.5 mm |
|
Height with DIN 35 * 7.5mm rail |
47.5 mm |
|
Length |
92 mm |
|
Width(Thickness) |
38 mm |
| Country of Origin | China |
