Connectwell CBB120 120 sq mm Stud Type Power Terminal Blocks

Save 19%
Sold By: HatchnHackSKU: DPA12

Price:
Sale price₹ 478.94 Regular price₹ 593.89

Tax included Shipping calculated at checkout

Out of stock

Description

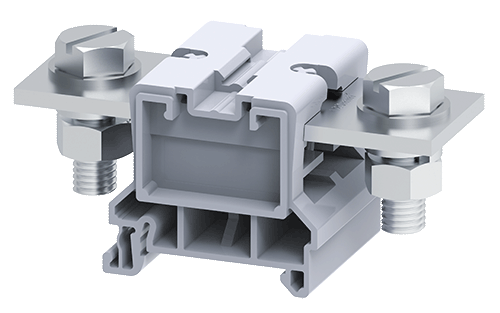

The Connectwell CBB120 is a 120 sq. mm Feed through Bolt/Nut Type Terminal Block in Grey color. CBB series Terminal Blocks are recommended for applications involving large cross-section wires. The wire is crimped to a ring/fork lug and screwed onto the Terminal Block's flat current bar.


Specifications
Rated Voltage 1000V
Housing Material Polyamide
Rated Current 269A

Tightening Torque

10 Nm

Product Function

Feed Through

Wire Entry Orientation

Side Entry

Mounting Possibilities

DIN 35/DIN 35-15 Rail

Screw Size

M10

Operated by

Nut Driver

Rated Surge Voltage

8 kV

Pollution Degree

3



Dimensions

Height with DIN 35 * 15mm rail

54.5mm

Height with DIN 35 * 7.5mm rail

47.3mm

Length

100mm

Width(Thickness)

48mm

Country of Origin China
