Description

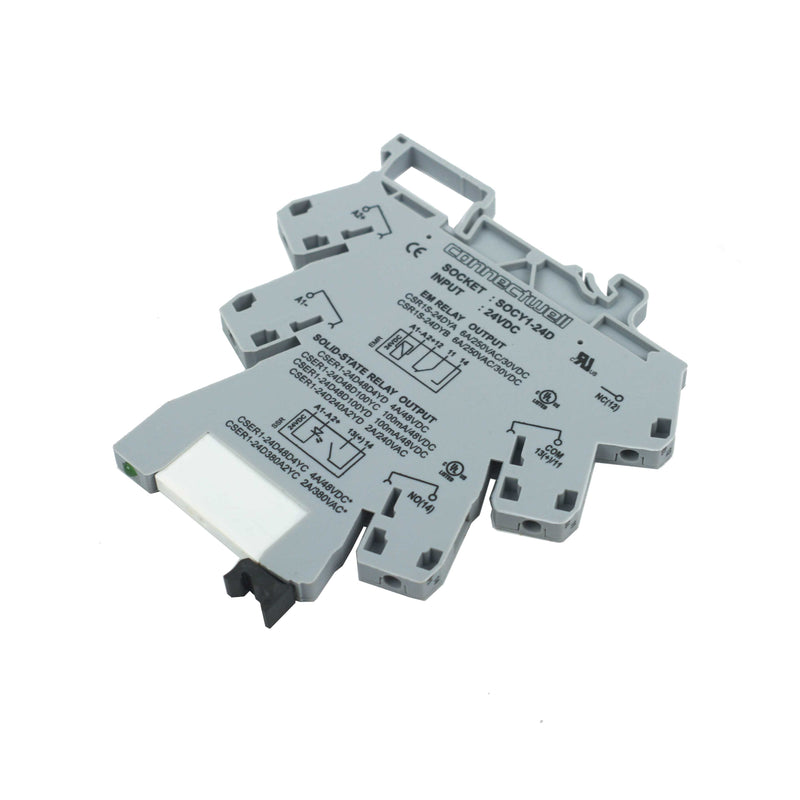

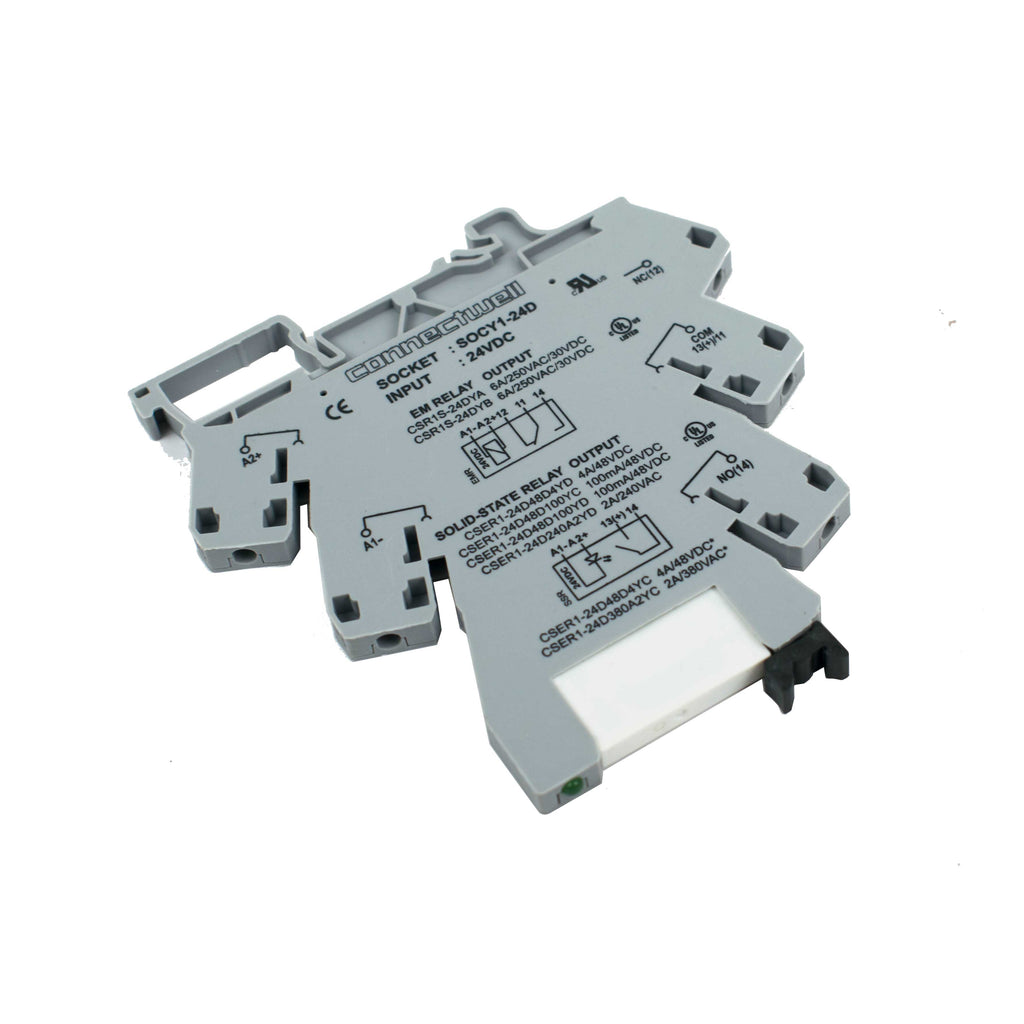

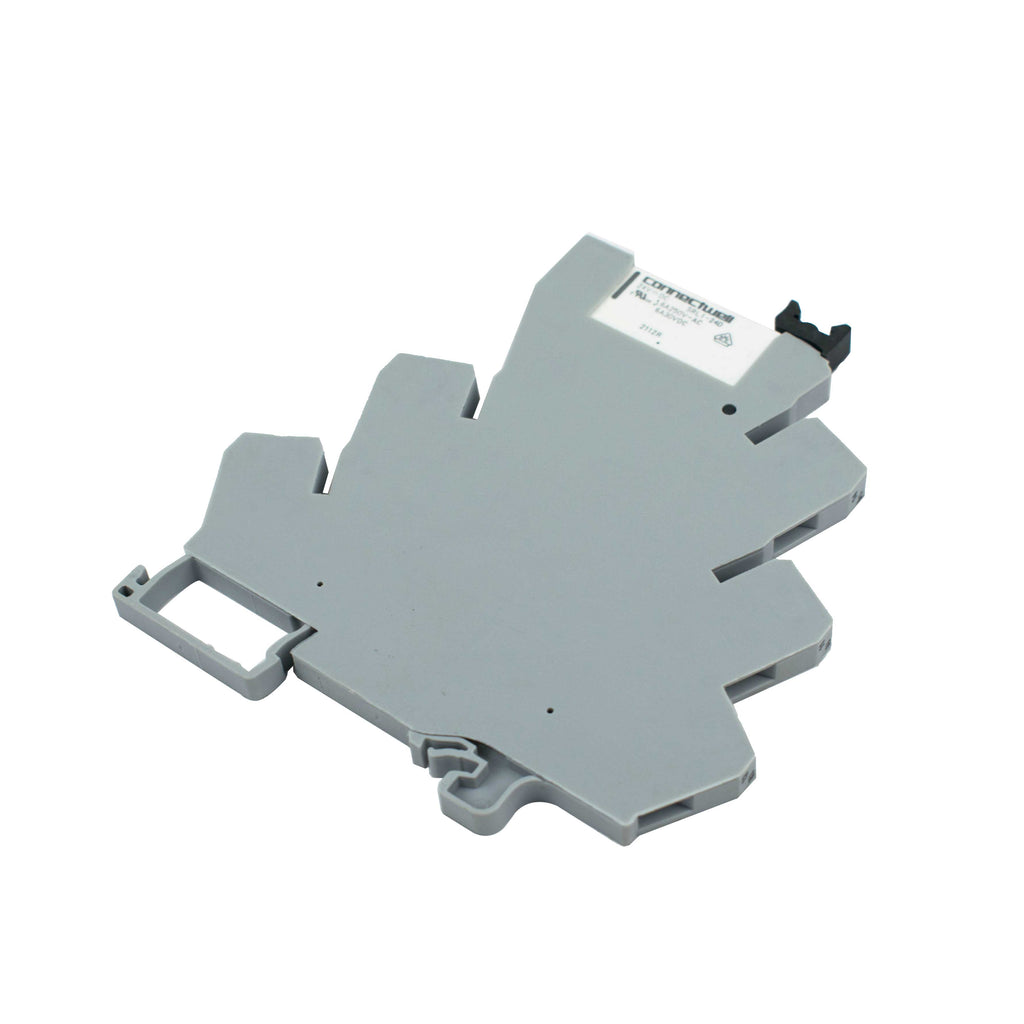

It's a 24V 6A Slim Relay Module. It has nominal operating voltage 24v DC and nominal input current 8 mA, resistance of coil are 3390ohm.
Features
- Compact 6.0mm thin design.
- Variety of Operating Voltages.
- High switching current: up to 6A at 250VAC
- Low coil power consumption: 175 mW.
- LED Indication on Coil activation.
- No requirement on the polarity of input voltage (except 5 VDC &24VDC Relay).
- Possibility of Jumpering up to 8 channels with a single link.
- Easy Legibility marker
- Choice of Pluggable Electromechanical Relays Or Solid State Relays.
- Choice of Screw & Spring Clamp Connection
- Special Snubber-based Slim Relays are Available.
- Integrated Input Protection.
Specifications
|
Bussing Possibility |
By Using Push-in Jumper |
|
Relay on Indication |
3mm Green LED |
|
Ambient Operating Temperature |
-40 to +55 °C |
|
Mounting Possibility |
DIN 35/DIN 35-15 Rail |
|
Housing Material |
PA 6,6 |
|
Housing Colour |
Gray |
|
Rated Voltage |
24 VDC |
|
Input Polarity Protection |
Reverse Polarity Protection, Rectifier based Protection. |
|
Relay type |
Electromechanical |
RELAY Input/Coil Specifications
|
Nominal Operating Voltage |
24 VDC |
|
Nominal Input Current |
8 mA |
|
Must Operate Voltage |
15.9 VDC |
|
Must Release Voltage |
1.2 VDC |
|
Nominal Input Power |
170 mW |
|
Coil Resistance |
3390 Ω |
Dimensions
|
Type of Connection |
Screw Connection |
|
Min. Wire Size |
0.2 mm² |
|
Max. Wire Size |
2.5 mm² |
|
Min. Wire Size(AWG) |
24 AWG |
|
Max. Wire Size(AWG) |
12 AWG |
|
Wire Stripping Length |
10 mm |
|
Torque |
0.4 Nm |
| Country of Origin | China |
