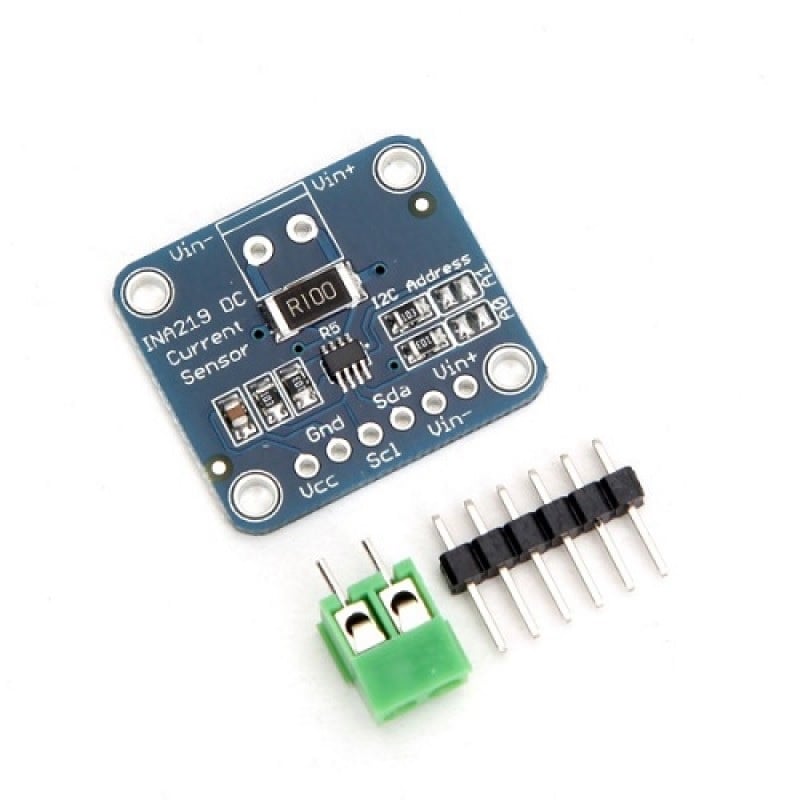

Description
- 0.1 ohm 1% 2W current sense resistor
- Up to +26V target voltage
- Up to ±3.2A current measurement, with ±0.8mA resolution
- Senses Bus Voltages from 0 to 26 V
- 2C- or SMBus-compatible interface. The
- Reports Current, Voltage, and Power.
| Operating Voltage (VDC) |
3 ~ 5.5 |
|---|---|
| Accuracy |
±0.5% |
| Operating Temperature (°C): |
-40 to 85 |
| Length (mm): |
26 |
| Width (mm): |
22 |
| Height (mm): |
6 |
| Weight (g): |
3 |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 5 × 1 cm |
