Description

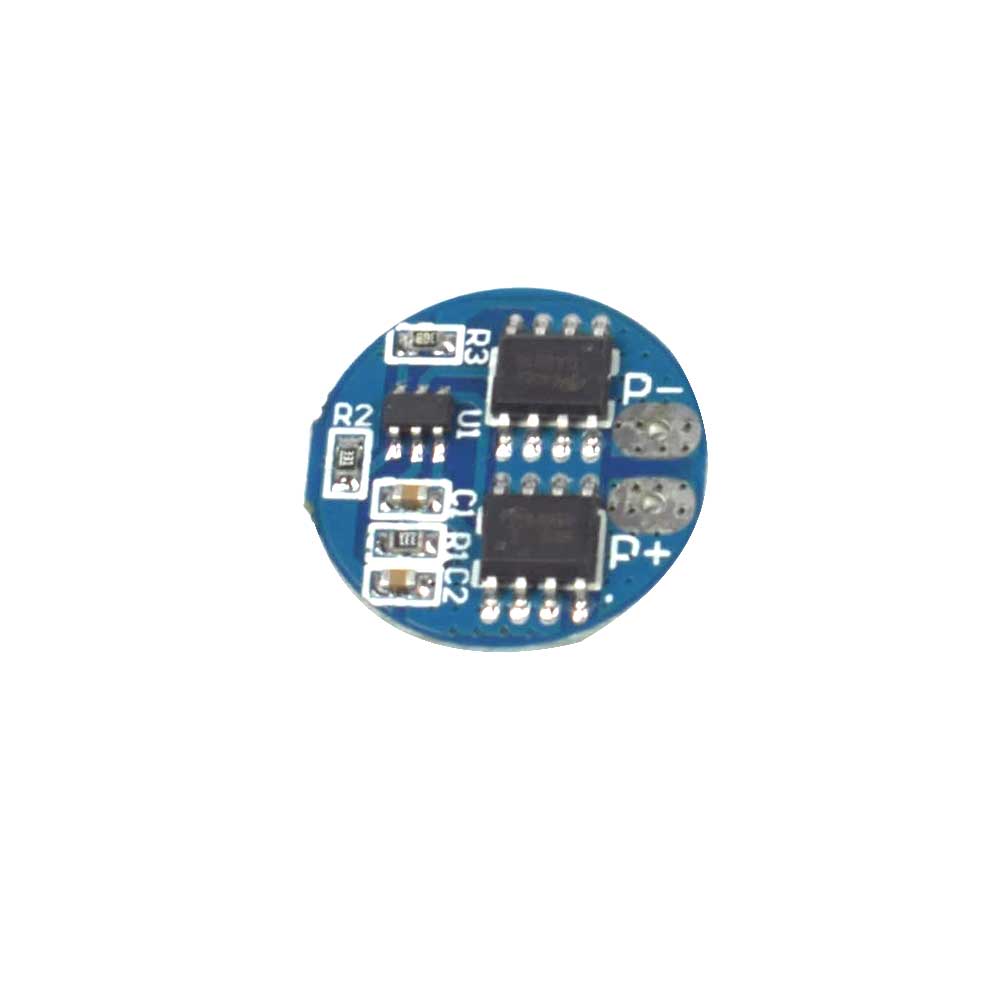

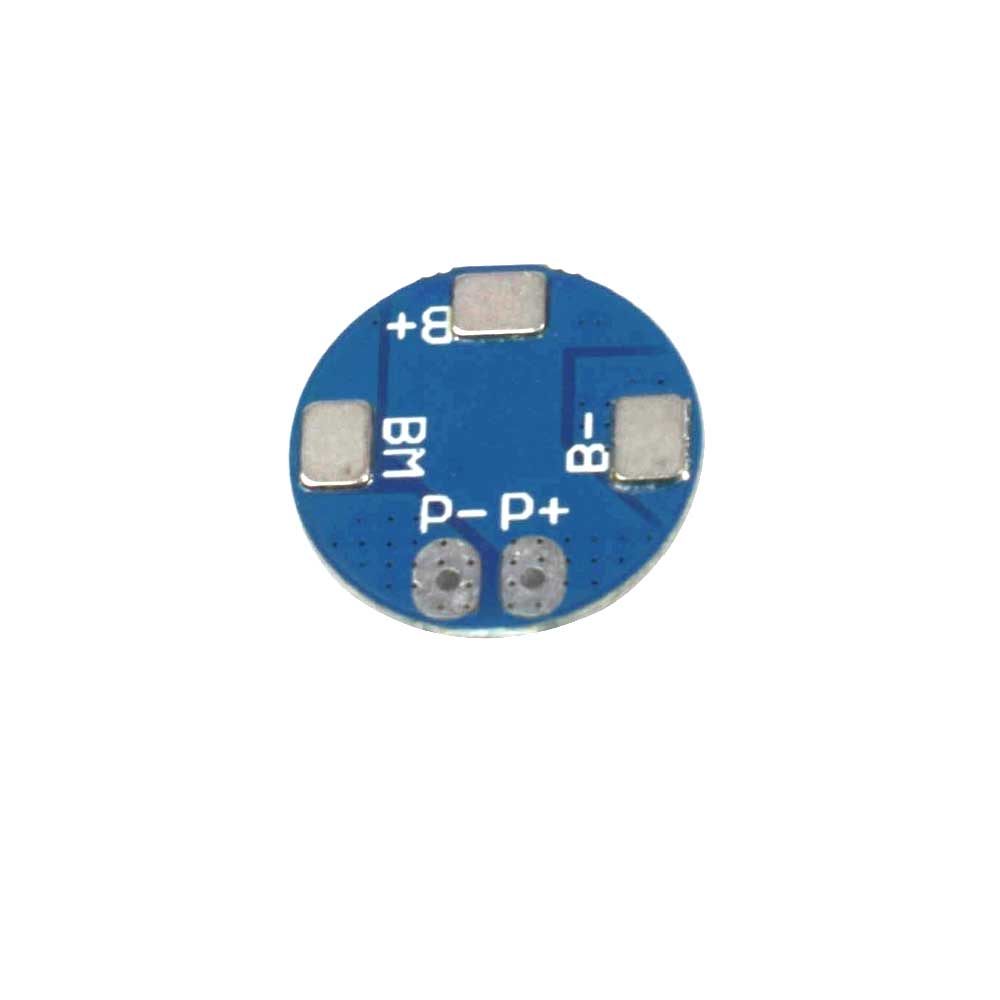

This is a Round 8.4V Lithium Battery Protection Module with short-circuit, overload, over-discharge, and overcharging protection. This is suitable for a wide range of applications due to its small size, excellent performance, and low cost.
Features
- Easy Connection
- Small and compact
- Safe and reliable to use
- Excellent Performance
- Low Cost
Specifications
| Model | Circular 2S 8.4V BMS |
| Type | BMS Lithium Battery Protection |
| Max Operating Current | 5A |
| Charging Voltage | 8.4 - 9.0V |
| Operating Temperature | -40 - 90 Degree C |
| Board Dimension/Diameter | 18mm |
| No of Pins Connection | 5 |
| Thickness | 3mm |
| Quiescent current | Less than 10uA |
