CH341A 24 25 Series Burner Chip EEPROM

Sold By: HatchnHackSKU: 9L03

Price:
Sale price₹ 282.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

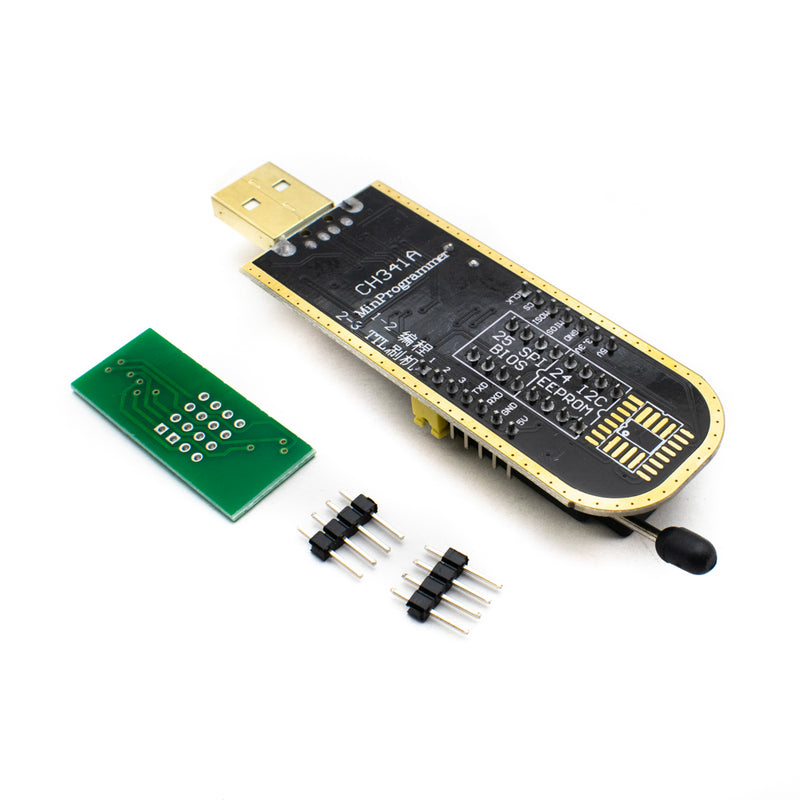

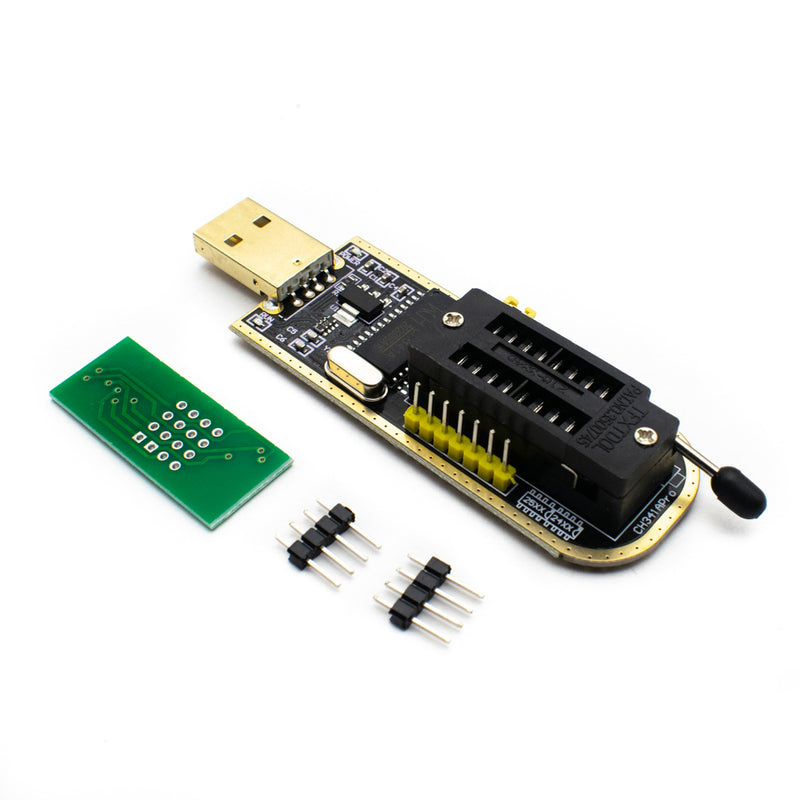

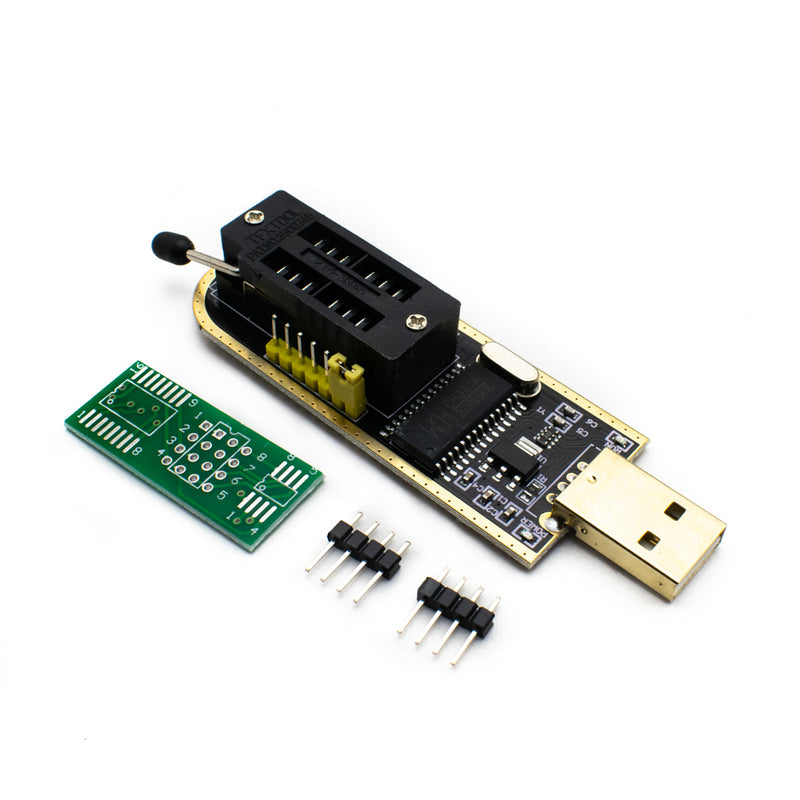

This CH341A 24 25 Series EEPROM Flash BIOS USB Programmer is designed to accommodate 24 EEPROM and 25 SPI flash 8pin/16 pin chips at a cheap cost. It has a CH 341A chip, which can automatically recognize 25 series chips, and a 24/25 series indicator lamp that allows the user to quickly determine the state of the modules. This awesome programmer is extremely user-friendly, as it offers USB to TTL conversion and the SOP8 SOP16 to DIP8 converter board simplifies chip connections. The CH341 is a USB bus converter chip that provides UART, printer port, parallel, and synchronous serial over the USB bus with 2-wire or 4-wire. CH341 supports alternate rate control signals in UART mode, such as serial transfer enable, serial receive in readiness, and so on. It also provides a common MODEM communication signal, allowing computers to increase their UART capabilities or directly upgrade synchronous interface devices to USB buses.

In printer port mode, the CH341 provides a conventional USB printer port that combines USB-relevant protocol with the Windows operating system to easily upgrade a standard parallel printer to the USB bus. CH341 outputs 8-bit parallel in EPP or MEM mode in parallel mode. It may be used to directly input/output data without the usage of an MCU or DSP. In addition, the CH341A supports synchronous serial interfaces like 2-wire (SCL, SDA) and 4-wire (CS, SCK/CLK, MISO/SDI/DIN, and MOSI/SDO/DOUT).

You will require the ComboTool app for performing:

  1. Writing & Executing JAVAScript in Android device and performing I/O directly.
  2. Plugin IR_Temper Sensor => Combotool changes to be a temperature meter.
  3. Plugin RS485 Converter =>It can capture/send RS485 Modbus frame.
  4. Plugin => It can be a UV meter.

Features:

  1. USB interface
  2. With CH341A chip
  3. Support 24 EEPROM and 25 SPI flash 8pin or 16pin chip
  4. With 24/25 status indicator lamp
  5. Support USB to TTL conversion Support 24EEPROM and 25 SPI flash 8pin/ 16pin chip
  6. Recognize 25 series chip automatically
  7. Supports download STC series procedure of single chip
  8. SPI pin to support expanding the utility
  9. STC microcontroller supports a full range of program download
  10. Support expanding the utility by SPI pin
  11. With SOP8 SOP16 to DIP8 converter board
  12. Used in wide applications PC motherboard, LCD monitor, DVD, router program reading and writing
  13. Supports Windows XP, Vista, Win7 and Win8 (32/64bit) system
SPECIFICATIONS:

Operating Voltage

5V-3.3V

Model CH341A 24 25 Series
Main Chip CH341A

L*B*H

85.2mm*27.7mm*26mm
