Description

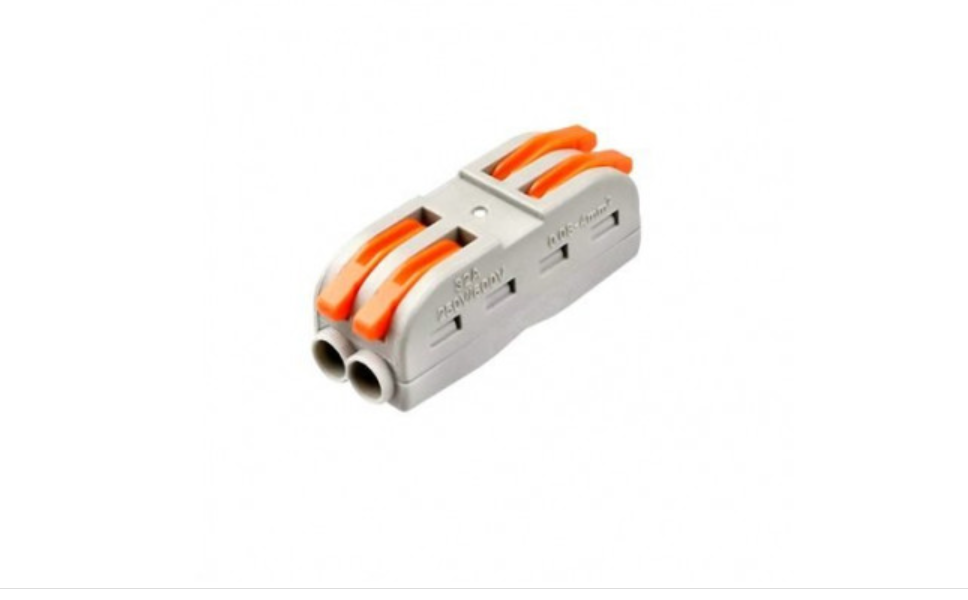

Its CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock‚ Its used for two wire line Connections. Its used for the line and neutral wire separation‚ Its voltage tolerance is approximately 400V‚ its used for the single strand hard wire whose Area can be 0.08mm to 2.5mm Square and the soft wire area can be 0.08mm to 4.0mm Square.
Features:
- Its peak electric current is 32A
- Its maximum power is 7KW
- Its safe and efficient
- Its universally compatible
- Its nickel plated metal inside
- Its has strong spring locking lever
- Compact Splicing
| Specifications | |
|---|---|
| Model No | CH-812 |
| Dimensions | 40x14x15mm |
| Colour | Grey and Orange |
| Wire Gauge | 12-28 AWG |
| Voltage Rating | 250V/4KV |
| Current Rating | 32A |
| Gender | Female |
| Type | Wire Connector |
| Material | Modified Nylon |
| Power Handling | 7KW |
| No. of Contacts | 02 |
| Terminals | 04 |
