Description

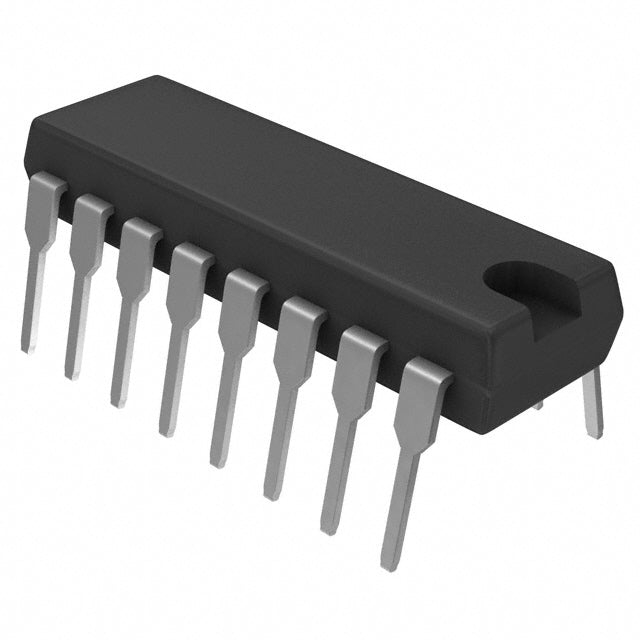

The CD4511BE IC is a popular LED driver integrated circuit (IC) in a 16-DIP package. It's designed specifically for driving 7-segment LED displays, making it a convenient choice for digital display applications such as digital clocks, timers, counters, and scoreboards. The IC eliminates the need for complex circuitry by providing a simple interface between a microcontroller or other digital logic circuitry and the 7-segment LED display. It can drive common cathode displays and offers BCD-to-7 segment decoding functionality, converting binary-coded decimal (BCD) input data into the appropriate output signals to illuminate the corresponding segments of the display. With its ease of use and reliability, the CD4511BE IC is widely used in electronic projects requiring numeric display capabilities.
Specifications:
| Logic type | Buffer, Non-Inverting |
| No. of Pins | 16 pins |
| Mounting type | Through Hole |
| Package type | 16-DIP (0.300", 7.62mm) |
| Voltage supply | 3V ~ 18V |
