Description

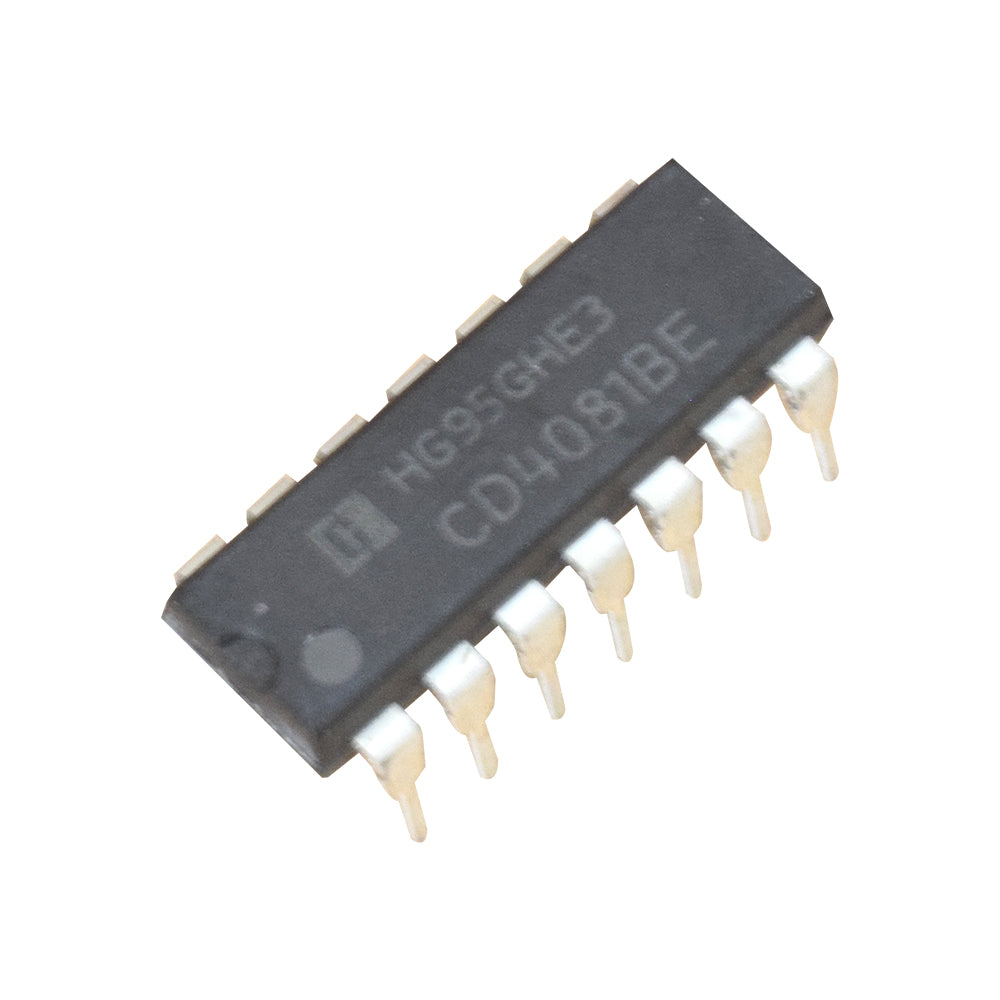

CD4081BE is a CMOS AND Gate it has quad 2 input AND Gate its high voltage rating type is 20V it has total 14Pins, 14-lead hermetic dual-in-line ceramic packages (F3A suffix), 14-lead dual-in-line plastic packages (E suffix), 14-lead small-outline packages (M, MT, M96, and NSR suffixes), and 14-lead thin shrink small-outline packages (PW and PWR suffixes) are the packaging options available for the CD4073B, CD4081B, and CD4082B types.
Features
-
Its high voltage is 20 V
-
Its input voltage range is -0.5 to 5V
- Its power dissipation per package is 100mW
- LED temperature is 265 Degree centigrade
- Its input capacitance is 7.5pF
Specification
| Model | CD4081BE |
| Type | IC |
| Package | 14DIP |
| Voltage | 20V |
| DC input current | 10mA |
| Device Dissipation per transistor | 100mW |
| Total power dissipation | 500mW |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
