Description

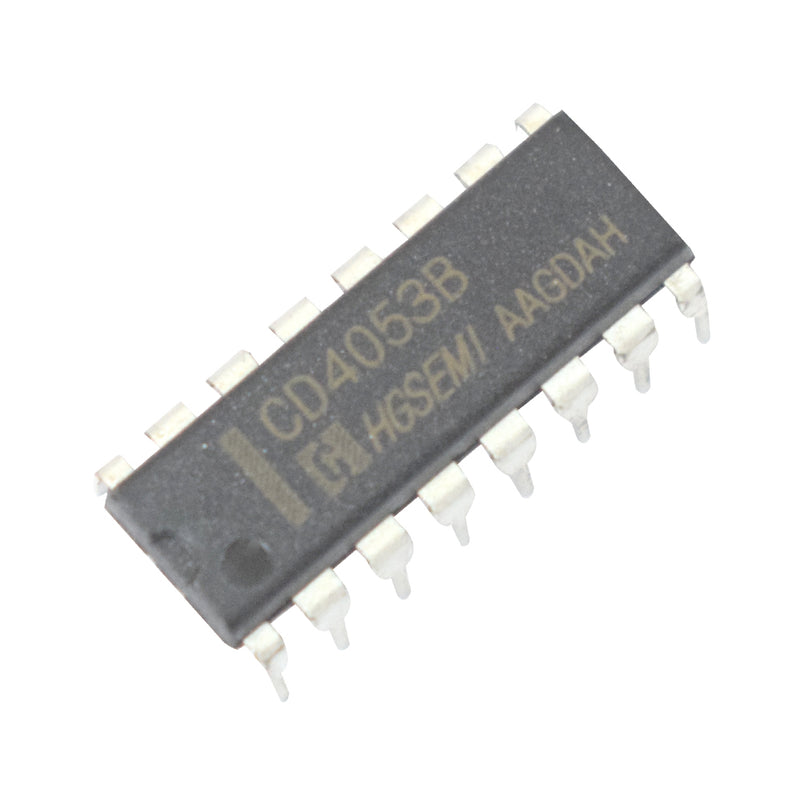

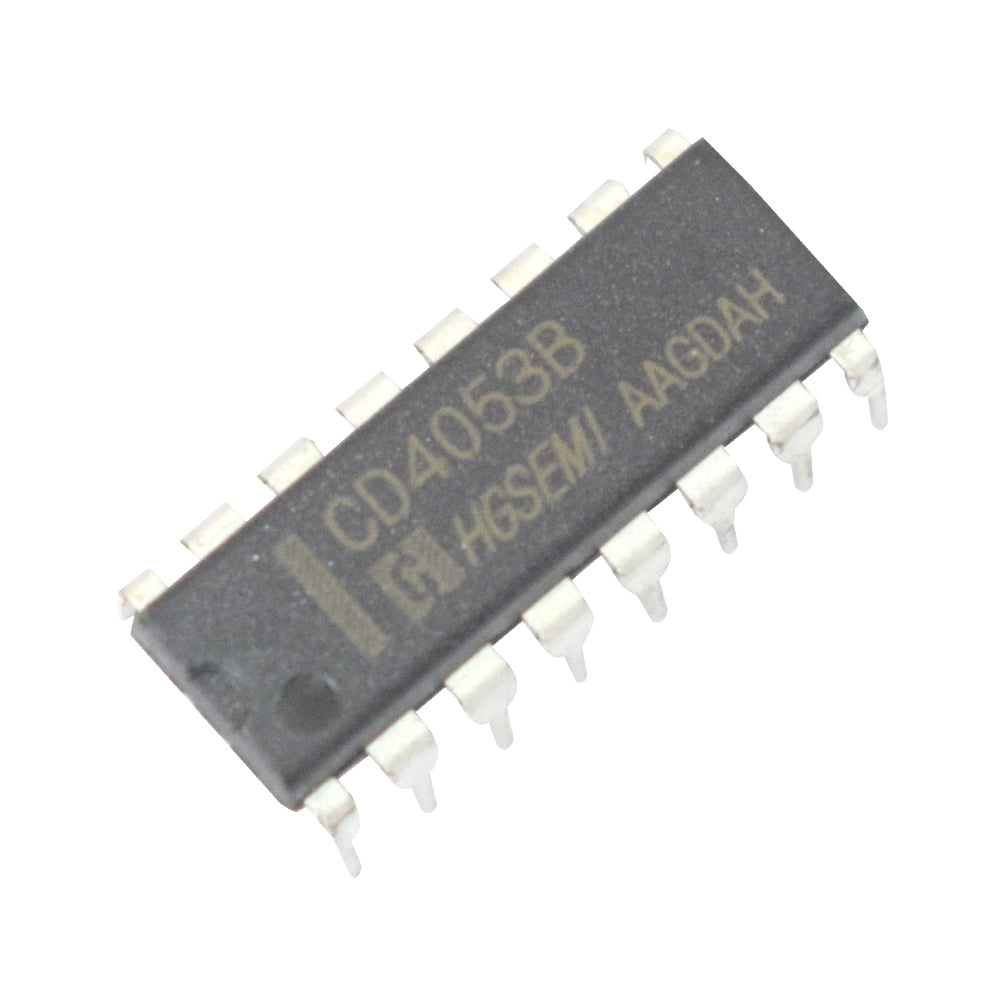

The CD4053B is a triple 2-Channel multiplexer with an inhibit input in addition to three independent digital control inputs (A, B, and C). One of two channels coupled in a single-pole, double-throw design is chosen by each control input.
Applications:
- Analog and Digital Multiplexing and Demultiplexing
- A/D and D/A Conversion
- Signal Gating
Features:
- High OFF Resistance, Channel Leakage of
- Very Low Quiescent Power Dissipation Under All Digital-Control Input and Supply Conditions, 0.2μW (Typ) atVDD-VSS= VDD-VEE= 10V
- Binary Address Decoding on Chip
- 5V, 10V, and 15V Parametric Ratings
- 100% Tested for Quiescent Current at 20V
- Maximum Input Current of 1μA at 18V Over Full Package Temperature Range, 100nA at 18V and 25C
Specifications
-
Model CD4053B Type IC Package 16DIP Voltage -0.5-20V DC input Current -+10mA No of Pins 16 Max lead temperature 265 ° C Operating Temperature 55 to 125° C Country of Origin China
