Description

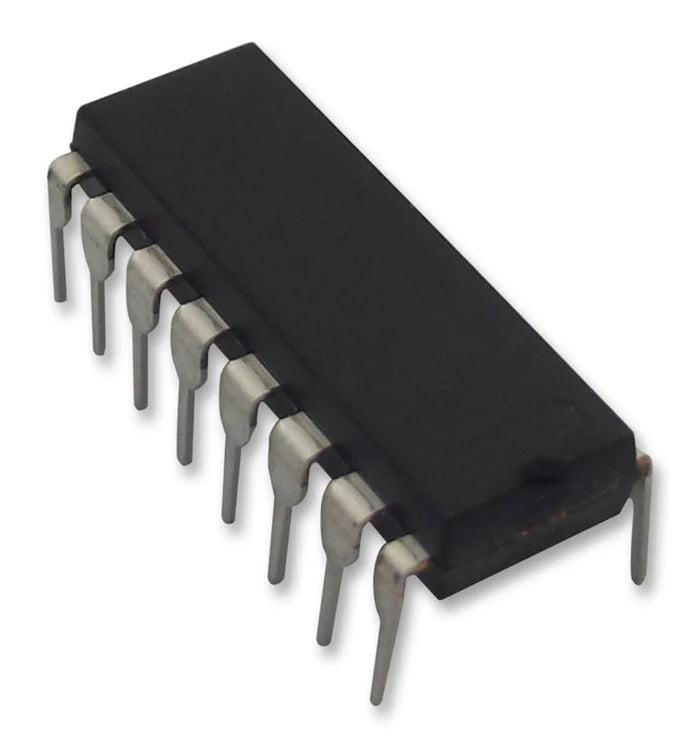

The CD4050BE is an integrated circuit (IC) that serves as a buffer and non-inverter with six channels, designed in a 16-pin dual in-line package (16DIP). This IC is commonly used in digital electronics for voltage level shifting and signal buffering applications. It operates at a wide voltage range, typically from 3V to 18V, making it versatile for various circuit designs. The non-inverting nature of the buffer ensures that the input signal is replicated at the output without any inversion, maintaining signal integrity. Its compact DIP package and multiple channels make it suitable for interfacing between different logic families or driving multiple loads from a single source.
Specifications:
| Brand | HLF |
| No. of pins | 16 DIP |
| Voltage | 3V ~ 18V |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
