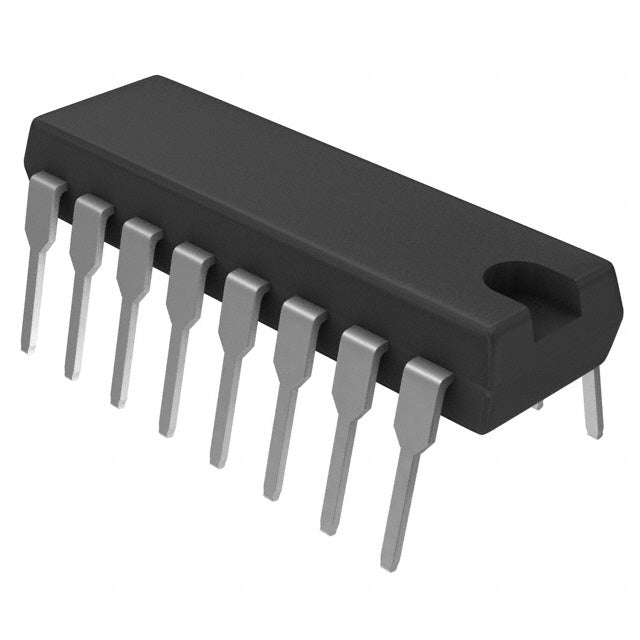

The CD4024BE is a specific model of integrated circuit (IC) produced by various manufacturers. It belongs to the CD4000 series of CMOS (Complementary Metal-Oxide-Semiconductor) logic ICs. The CD4024BE is a 7-stage ripple-carry binary counter/divider with buffered outputs. It is commonly used in various digital electronics applications such as frequency division, time delay generation, and counting circuits.
Features:
- Counter Type: Utilizes Ripple Carry Binary methodology and functions as a Divider.
- Clock Frequency: Operates at a maximum frequency of 24MHz.
- Maximum Count: Capable of counting up to 7.
- Number of Pins: Features 14 pins for connectivity.
- Supply Voltage: Operates within a supply voltage range of 3V to 18V.
- Logic IC Family: Part of the CD4000 series.
- Logic IC Base Number: Identified as 4024.
