Description

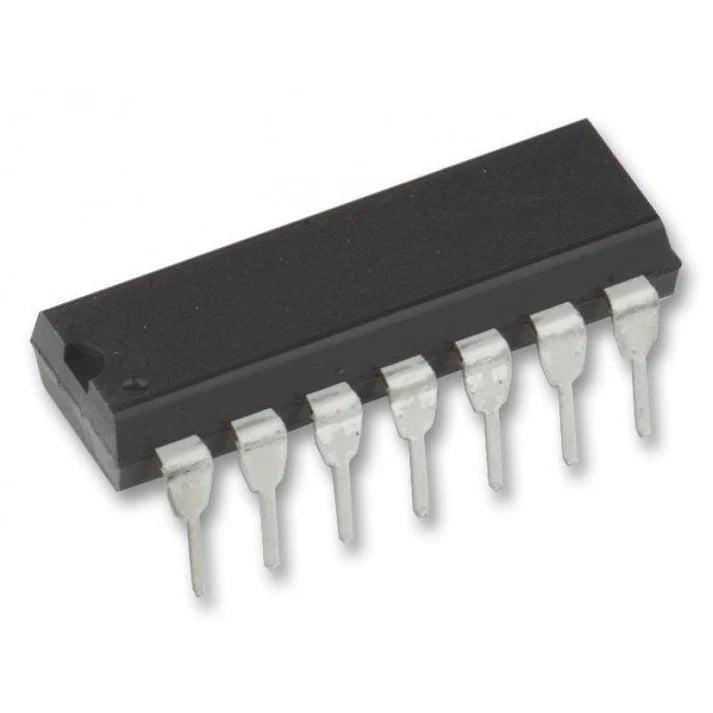

The CD4001BE is a Quad 2-Input NOR Gate integrated circuit (IC) in a Dual Inline Package (DIP-14) format. It combines four independent NOR gates in a single chip, offering a compact and efficient solution for logic gate applications. Each NOR gate has two input pins and one output pin, following the truth table for NOR logic operations. The IC operates within a specified voltage range and is commonly used in digital electronics for tasks such as signal processing, data manipulation, and logical operations. Its DIP-14 packaging facilitates easy integration into circuit boards, making it a popular choice for various electronic projects.
Features:
- Four Independent 2-input NOR Gates
- Standard CD4001 Pin Configuration
- Wide Operating Voltage Range
- Operating Temperature to 85°C
- Low Power CMOS
Applications:
- Servers
- ALUs
- Memory units
- The IC can be used for Noise Removing
Specifications:
| No. of Pins | 14 |
| Supply voltage | 3V to 18V |
| Channels | 4 |
| Input type Standard | CMOS |
| Operating temperature range | -55 to 125°C |
